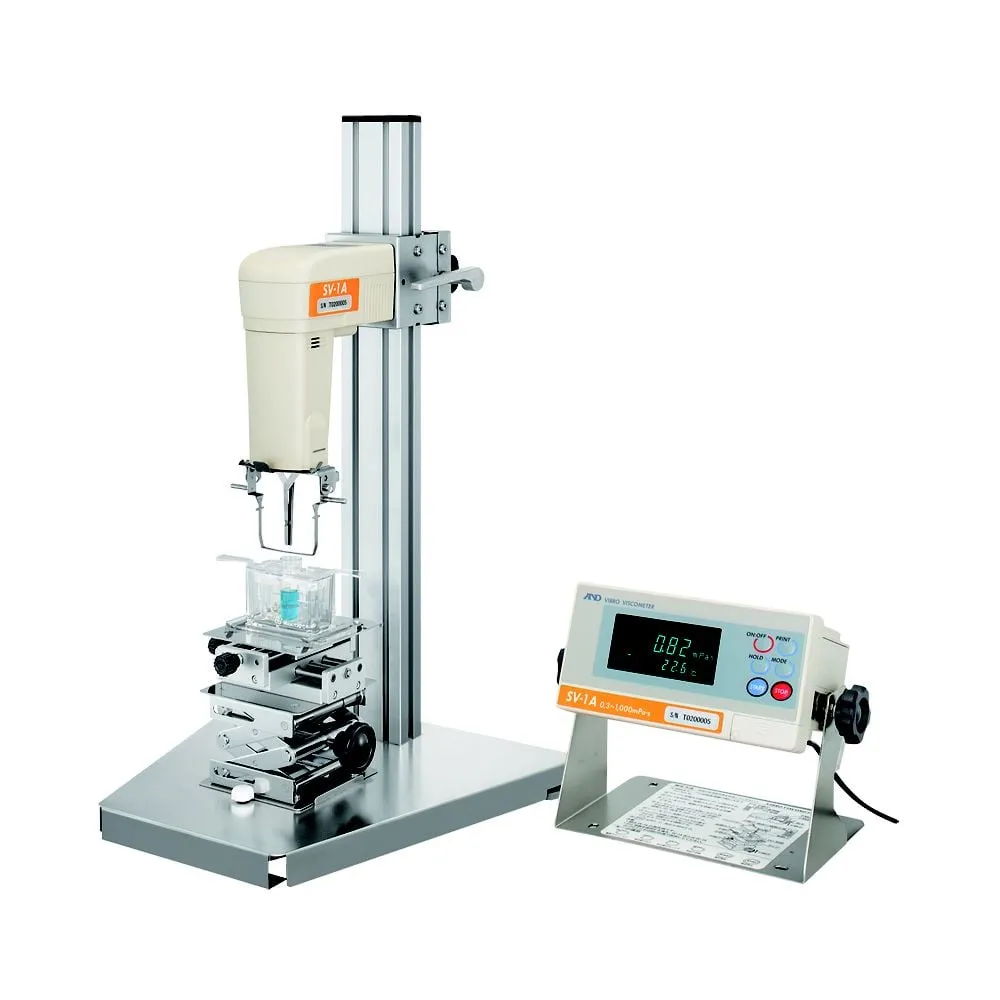

61-4678-66 Tuning Fork Vibration Viscometer SV-1A SV-1A
Product Description
Product Model: 61-4678-66Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4678-66
Product Brand: A&D
Features
- [Applications]
- ・ Measurement of viscosity required for correction of particle size distribution • Viscosity control of resist solutions, inks, paints, and adhesives • Viscosity control of semiconductors, abrasives, ceramic materials, blood, etc. • Curing process of polymers, solder fluxes, proteins, etc. • Measurement of gelling point of non-ionic surfactants • Measurement of viscosity change due to temperature change of lubricating oils, engine oils, foods, and beverages • [Features] • • • • Minimum required sample size of 2 ml (SV1A) • • • • Achieved 1% precision reproducibility of full range with tuning fork vibration. Viscosity calibration is possible using a viscosity standard solution.
- Wide measurement range.
- Selectable measurement range: A wide range of continuous measurements from low to high viscosity can be performed without changing the vibrator.
- Viscosity measurement in real time.
- Continuous measurement for a long time.
- Accurate and quick temperature detection.
- Real-time graphing of measurement data
- High chemical resistance with a titanium vibrator
- Stand set standard included
- Standard RS-232C (D-Sub25P knife)
Spec
- Measuring method: SV Type (tuning fork vibration method)/Fixed vibration 30Hz
- Measurement viscosity range: 0.3 - 1,000mPa・s
- Measurement accuracy: 1% (full-range) setting environment: 20 - 30℃, Non-condensing *With Standard solution for Calibration, Repeatability (Standard deviation) when measured repeatedly with transducer being kept in the same liquid
- Sample volume: 2ml
- Sample Temperature measuring section: 0 - 160℃/0.1℃ display
- Outer dimensions: Measurement unit 2962 (W) x 314 (D) x 536 (H) mm, Display section 238 (W) x 132 (D) x 170 (H) mm
- Deadweight: Measurement unit about 5kg, Display section is about 1.3kg
- Power supply: AC adapter (standard)
- Standard accessories: Instruction manual, Connection cable (1 volume), AC adapter, Sample container x 5, Small sample container x 5, Glass container (Capacity 13mL) x 2 pieces, Glass container holder x 1 piece, Circulating water jacket x 1 piece, RS232C Straight Cable x 1 piece, Metering section fixed stand x 1 piece, X-Y-Z stage x 1 piece, Small sample container lid x 5 pieces, Data communication software WinCT-Viscosity (CD-ROM) x 1 piece, USB serial converter x 1 piece, Phillips-head screwdriver x 1 piece
