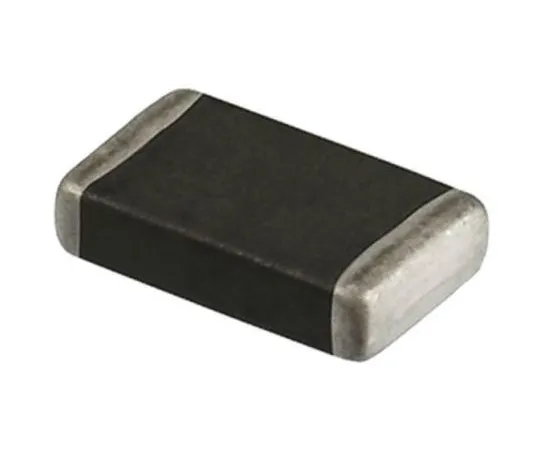

63-4934-29 Wurth Elektronik WE-VS Series Metal Oxide Varistor 180pF 10A, Clamping 120V, Varistor 70V 1206 (3216M) Case 82531400
Electronic/Electrical Parts and Controll Equipments

63-4934-29 Wurth Elektronik WE-VS Series Metal Oxide Varistor 180pF 10A, Clamping 120V, Varistor 70V 1206 (3216M) Case 82531400

model: 63-4934-29
brand: Wurth Elektronik

Product Description

Product Model: 63-4934-29Product Brand: Wurth Elektroni […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4934-29
Product Brand: Wurth Elektronik

Features

  • Surge protection in accordance with EN-61000-4-5 ESD protection in accordance with EN-61000-4-2 Burst protection in accordance with EN-61000-4-4. SMD Power Varistors WE-VS Series. After a surge impulse the varistors works immediately in normal mode so there is no slip current Excellent absorption Operating temperature: -40 °C → +85 °C for the sizes 0402 to 0805,-40 °C → +125 °C for the sizes 1206 to 2220 Nickel barrier for lead-free soldering

Spec

  • Quantity:1bag(5pieces)
  • Varistor Voltage : 70V
  • Maximum AC Voltage Rating : 40V
  • Maximum DC Voltage Rating : 56V
  • Clamping Voltage : 120V
  • Clamping Current : 10A
  • Energy : 1J
  • Series : WE-VS
  • Maximum Surge Current : 200A
  • Capacitance : 180pF
  • Length : 3.2mm
  • Depth : 1.6mm
  • Package/Case : 1206 (3216M)
  • CODE No.:669-4456
