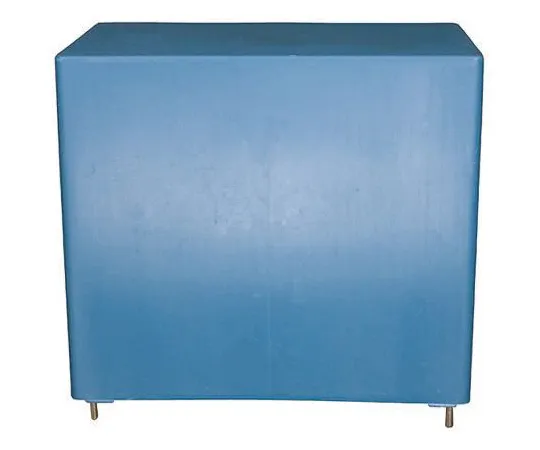

63-4933-65 EPCOS 5μF Polypropylene Capacitor PP 1.1kV dc ±10% Tolerance Through Hole B32774 Series B32774D0505K000
Product Description
Product Model: 63-4933-65Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-4933-65
Product Brand: EPCOS
Features
- MKP DC Link B3277x Series. Typical applications are frequency convertors, industrial power supplies, invertors Polypropylene (MKP) dielectric, plastic case with Epoxy resin seal (UL 94V-0) Compact high CV product Excelent self-healing properties G types have 4 pins to aid with mounting
Spec
- Quantity：1piece
- Capacitance : 5µF
- Voltage : 1.1kV dc
- Mounting Type : Through Hole
- Tolerance : ±10%
- Series : B32774
- Lead Pitch : 27.5mm
- Length : 31.5mm
- Depth : 19mm
- Height : 30mm
- Dimensions : 31.5 x 19 x 30mm
- Dielectric : PLYP
- Lead Diameter : 0.8mm
- CODE No.:669-0006
