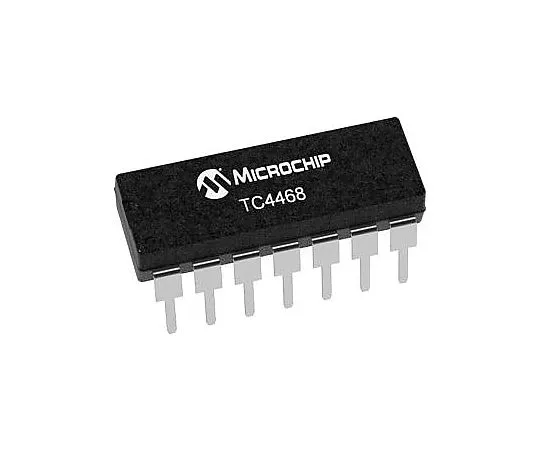

63-4933-06 Microchip TC4468CPD Quad Low Side MOSFET Power Driver, 1.2A 14-Pin, PDIP TC4468CPD
Product Description
Product Model: 63-4933-06Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-4933-06
Product Brand: Microchip
Features
- TC4467/4468/4469 MOSFET Drivers. The Microchip TC4467, TC4468 and TC4469 are a range of four-output Low-Side MOSFET Drivers. These MOSFET drivers have two inputs for each output configured as logic gates. Features. Operating Range: 4.5 V to 18V Symmetrical Rise and Fall Times: 25 ns Short, Equal Delay Times: 75 ns Latchproof - Withstands 500mA Inductive Kickback 2 Input Logic Gates per Output - NAND for the TC4467, AND for the TC4468 and AND/INV for the TC4469 respectively 2 kV ESD Protection on All Pins
Spec
- Quantity：1bag(2pieces)
- Number of Drivers : 4
- Minimum Operating Supply Voltage : 4.5 V
- Maximum Operating Supply Voltage : 18 V
- Topology : Low Side
- Mounting Type : Through Hole
- Peak Output Current : 1.2A
- Number of Outputs : 4
- Polarity : Non-Inverting
- Package Type : PDIP
- Pin Count : 14
- Input Logic Compatibility : CMOS
- Minimum Operating Temperature : 0 °C
- CODE No.:668-4418
