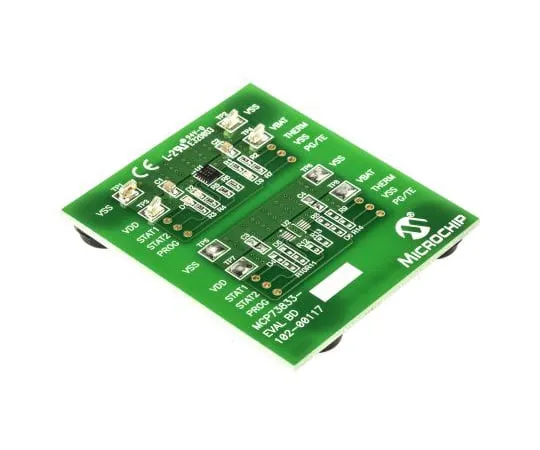

63-4932-37 Microchip MCP73833EV MCP73833EV
Product Description
Product Model: 63-4932-37Product Brand: Microchip Featu […]
Contact Us
Product Details
Product Model: 63-4932-37
Product Brand: Microchip
Features
- MCP73833 Charge Manager Evaluation Kit
- The MCP73833 Lithium-Ion Battery Charging Evaluation Board has two circuits for evaluating various device options.
- Charging voltage: 4.20 V Programmable fast charging current, up to 1000 mA Discharge cell pretreatment: PretreatmentThreshold voltage: 3.0 V Pretreatment current: 10% of programmable fast charging current Automatically charge complete by minimum current in constant voltage mode Safety time interval of 6 hours Automatically charge complete End current: 7.5% of programmable fast charging current Automatic recharge: Threshold voltage: 4.05 V Cell temperature monitorCharging current for fuel gauge MonitorThermally adjusted reverse discharge protectionHigh power handling capacity 3 mm x 3 mm, 10 lead Evaluated by DFN packageSimple standalone operation Powered from external bench power supply or voltage-adjusted wall cube
Spec
- Quantity：1piece
- MCP73833 Charge Manager Evaluation Kit. The MCP73833 Li-Ion Battery Charger Evaluation Board contains two circuits for evaluation of various device options. Charge Voltage: 4.20V Programmable Fast Charge Current up to 1000mA Preconditioning of deeply depleted cells: preconditioning threshold voltage: 3.0V Preconditioning Current: 10% of Programmed Fast Charge Current Automatic charge termination by minimum current in Constant Voltage Mode Automatic charge termination by safety time period: 6 hours Termination current: 7.5% of Programmed Fast Charge Current Automatic recharge: threshold voltage: 4.05V Cell temperature monitoring Charge current monitor for fuel gauging Thermal regulation Reverse discharge protection Evaluation in 3mm x 3mm, 10-Lead DFN package for higher power handling capability Simple stand-alone operation Powered from external bench supply or voltage regulated wall cube
- CODE No.:667-7990
