Electronic/Electrical Parts and Controll Equipments

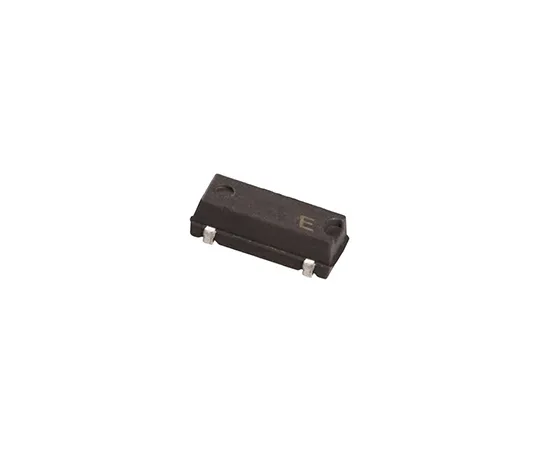

63-4931-72 Epson 32.768kHz Crystal Unit ±20ppm SMD 4-Pin 8 x 3.2 x 2.38mm Q13MC3061000611
model:
63-4931-72
brand:
SEIKO EPSON CORPORATION
Product Description
Product Model: 63-4931-72Product Brand: SEIKO EPSON COR […]
Contact Us
Product Details
Product Model: 63-4931-72
Product Brand: SEIKO EPSON CORPORATION
Features
- MC-306 Crystal Unit. The MC series is a kHz range SMD crystal unit from EPSON. Known as a tuning fork crystal, these devices *** a piezoelectric effect to produce a constant frequency. The MC-306 device is a larger crystal unit that covers a broader frequency range, making it ideal for clock and microcomputer applications.
Spec
- Quantity：1bag(5pieces)
- Standard Frequency : 32.768kHz
- Mounting Type : Surface Mount
- Load Capacitance : 6pF
- Package Type : SMD
- Pin Count : 4
- Length : 8mm
- Width : 3.2mm
- Height : 2.38mm
- Dimensions : 8 x 3.2 x 2.38mm
- Frequency Tolerance : ±20ppm
- Series Resistance : 50kΩ
- Minimum Operating Temperature : -40 °C
- Maximum Operating Temperature : +85 °C
- CODE No.:667-6120
