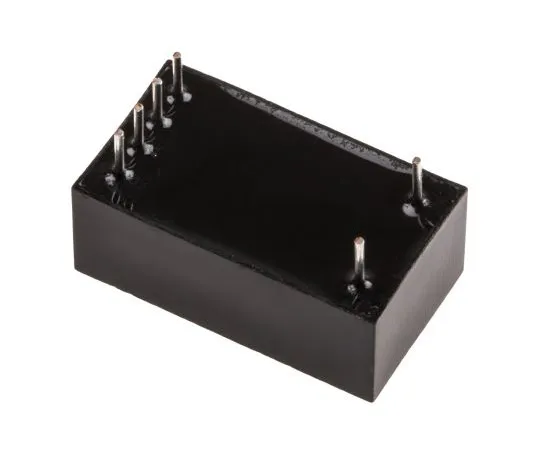

63-4931-27 Recom RCD-24-0.30 LED Driver IC, 4.5 → 36 V dc 300mA 6-Pin PCB RCD-24-0.30
Product Description
Product Model: 63-4931-27Product Brand: Recom Features […]
Contact Us
Product Details
Product Model: 63-4931-27
Product Brand: Recom
Features
- Operating temperature is without derating. MTBF to MIL-HDBK-217F (25°C). Constant Current LED Driver, RCD-24 Series - PCB. Non-isolated Drives up to ten 2W power LEDs Constant current source Output current accuracy ±2%, Output current stability ±1% Efficiency up to 96% Wide input voltage range PWM digital and analogue voltage dimming Remote On/Off control pin 0 to 4Vdc analogue dimming Short circuit protection Compact package
Spec
- Quantity：1piece
- Output Current : 300mA
- Input Voltage : 4.5 → 36 V dc
- AC or DC Input Voltage : dc
- Dimming Operation : 1 to 10 V dc, PWM
- Maximum Output Power : 10.5W
- Package Type : PCB
- Number of Pins : 6
- Maximum Output Voltage : 35V
- Minimum Output Voltage : 2V
- Current Rating : 0 → 300mA
- CODE No.:667-1649
