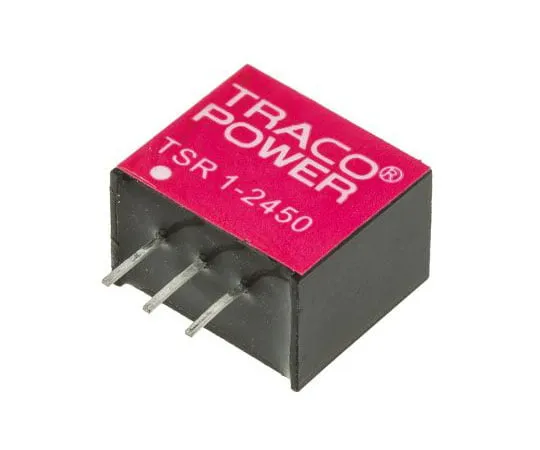

63-4929-93 TRACOPOWER Switching Regulator, 6.5 → 36V dc Input, 5V dc Output, 1A TSR 1-2450
Electronic/Electrical Parts and Controll Equipments

63-4929-93 TRACOPOWER Switching Regulator, 6.5 → 36V dc Input, 5V dc Output, 1A TSR 1-2450

model: 63-4929-93
brand: TRACOPOWER

Product Description

Product Model: 63-4929-93Product Brand: TRACOPOWER Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4929-93
Product Brand: TRACOPOWER

Features

  • 3. Step-Down Switching Regulator TSR 1 Series. The Tracopower TSR-1 series of step-down switching regulators are great replacement for linear regulators as they solve many power supply problems. These DC to DC converters are up to 96% more efficient with built-in capacitors and short circuit protection. Allowing full load operation up to +60°C ambient temperature without the need of any heat sink or forced cooling. The TSR-1 switching regulators provide other significant features over linear regulators. Providing better output accuracy (±2%), lower standby current of 2 mA and no requirement of external capacitors. The high efficiency and low standby power consumption makes these regulators an ideal solution for many battery powered applications. Features ; Benefits. Up to 96% efficiency No heat-sink required Pin compatible with LMxx linear regulators SIP-package fits existing TO-220 footprint Built in filter capacitors Operation temperature range –40°C to +85°C Short circuit protection Wide input operating range Excellent line / load regulation Low standby current

Spec

  • Quantity:1piece
  • Input Voltage : 6.5 → 36V dc
  • Output Voltage : 5V dc
  • Number of Outputs : 1
  • Output Current : 1A
  • Power Rating : 5W
  • Mounting Type : Through Hole
  • Package : SIP 3
  • Minimum Temperature : -40°C
  • Maximum Temperature : +85°C
  • Efficiency : 93 → 84%
  • MTBF : 5350000h
  • Load Regulation : ±0.4%
  • Line Regulation : ±0.2%
  • Ripple And Noise : 50mV Pk-Pk
  • Weight : 1.9g
  • CODE No.:666-4379
