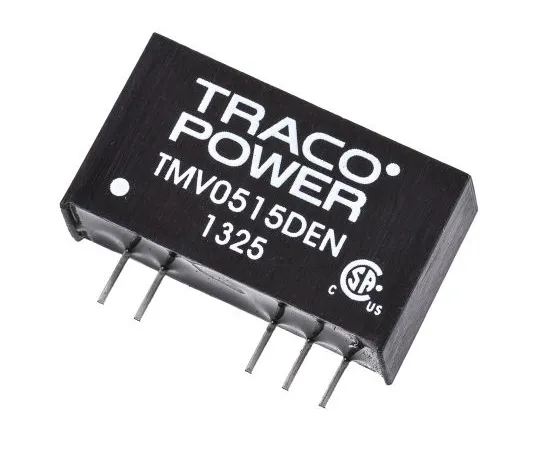

63-4929-87 TRACOPOWER TMV EN 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out ±15V dc TMV 0515DEN
Electronic/Electrical Parts and Controll Equipments

63-4929-87 TRACOPOWER TMV EN 1W Isolated DC-DC Converter Through Hole, Voltage in 4.5 → 5.5 V dc, Voltage out ±15V dc TMV 0515DEN

model: 63-4929-87
brand: TRACOPOWER

Product Description

Product Model: 63-4929-87Product Brand: TRACOPOWER Feat […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4929-87
Product Brand: TRACOPOWER

Features

  • IEC/EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1-03. CB, CSA. De-rating 4% per °C above 70°C. MTBF to MIL-HDBK-217F (25°C). 3. Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMV-EN Series. The Traco TMV-EN Series is a family of 1W single/dual output semi-regulated DC/DC converters with an ultra- miniature design and high input/output isolation of 6000Vdc. These semi-regulated DC/DC converters are ideal for *** within power drivers where unregulated DC/DC converters do not meet the input voltage range at load change. The TMV-EN series is ideal for applications such as distributed power systems, mixed analog/digital subsystems, portable test equipments, local power networks and battery backed systems. High isolation test voltage, 6kV peak Reinforced insulation, rated for 250Vrms working voltage Unregulated outputs Short circuit protection, 1sec (limited) UL94V-0 package material Small footprint SIP-7 package

Spec

  • Quantity:1piece
  • Output Voltage : ±15V dc
  • Input Voltage Range : 4.5 → 5.5 V dc
  • Input Voltage Nominal : 5 V dc
  • Isolation Voltage : 3kV
  • Power Rating : 1W
  • Output Current : ±30mA
  • Mounting Type : Through Hole
  • Number of Outputs : 2
  • Package : SIP 7
  • Load Regulation : ±10%
  • Maximum Temperature : +85°C
  • Depth : 12.5mm
  • CODE No.:666-4102
