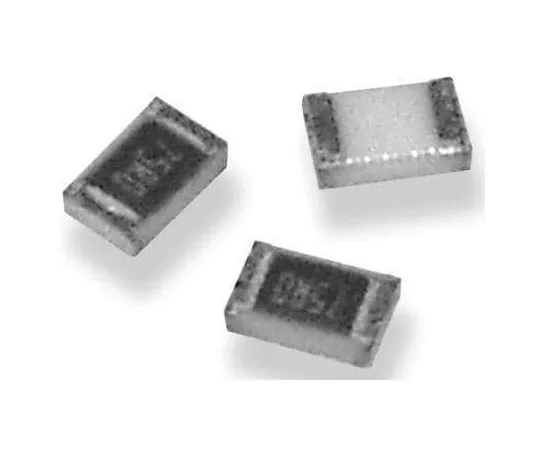

63-4929-12 110Ω 0805 Thin Film Precision Thin Film Surface Mount Fixed Resistor ±0.1% 0.1W - CPF0805B110RE CPF0805B110RE
model:
63-4929-12
brand:
TE Connectivity
Product Description
Product Model: 63-4929-12Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4929-12
Product Brand: TE Connectivity
Features
- 0805 TE Connectivity CPF Series Precision Resistors 71Ω - 294Ω. CPF precision resistors from TE Connectivity are constructed from an alumina substrate with a Nichrome (NiCr) resistor layer. They feature an electroplated tin finish that is 100% matte. Offered in a range of standard case sizes these chip resistors have uniform, accurate dimensions that enable easy placement. CPF series thin film precision resistors from provide high stability and close accuracy. These chip resistors have resistance tolerances down to 0.1% and Temperature Coefficient of Resistance (TCR) values as low as 15ppm/°C.. Features. Accurate dimensions High stability High precision Range of resistance values available to suit every application Temperature range of -55°C to +155°C. Product Application Information. Suitable applications for CPF precision resistors include communications, industrial controls, instrumentation and medical applications.
Spec
- Quantity:1bag(5pieces)
- Resistance : 110Ω
- Technology : Thin Film
- Package/Case : 0805 (2012M)
- Tolerance : ±0.1%
- Power Rating : 0.1W
- Temperature Coefficient : ±25ppm/°C
- Series : CPF
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +125°C
- CODE No.:666-2446
