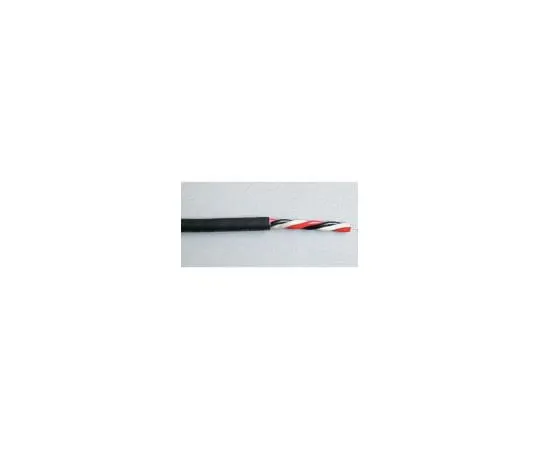

62-0685-63 Robot Cable (For Power Supply) VCTF43Z (0.75Sq Outer Diameter 8.1mm) 1m VCTF43Z0.75SQ-3C
Product Description
Product Model: 62-0685-63Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0685-63
Product Brand: FA Ubon
Features
- Electrical Appliance and Material Safety Act (0.75 mm2 or more)&UL/cUL Global Standard Cable
- Heat Resistant (105°C), Oil Resistant, Flexion Resistant for Movable Use
- Eligible Wire Diameter 0.08 mm Flexible Stranded Wire (with Center Reinforcing String)
- Application: Cable Bear Robot Wiring, Wiring in Oil Environment
Spec
- Cut length: 1m
- Format: VCTF43Z 3C-0.75sq
- Conductor section size: 0.75sq
- Conductor configuration (piece/mm): 6/28/0.08
- Outer diameter: 8.1mm
- Allowable current: 8A
- Rating voltage: 300V
- Rating temperature: 75℃
- Fire retardancy: 60° slope
- Applicable standard: Electric appliance safety law 1450935
