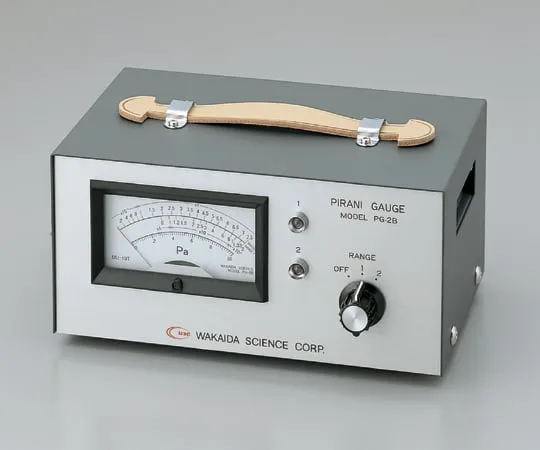

2-1484-02 Pirani Vacuum Gauge PG-2B
model:
2-1484-02
category:
toner
Product Description
Product Model: 2-1484-02 Features It easy to handle and […]
Contact Us
Product Details
Product Model: 2-1484-02
Features
- It easy to handle and compact, and cost-effective by integrated meter.
- Filaments is made of tungsten, there is almost no change due to long-term *** by tungs made.
Spec
- Model number: PG-2B
- Measurement range: 2 stages
- Recorder output: Each range full scale 10mV
- Measurement sphere: Special Pirani sphere (stainless steel (SUS304)))
- Power supply: 100VAC 50/60Hz
- Power consumption: 11W
- Weight: 2.2kg
- Measurement range: 200 - 2 x 10^-1Pa
- Size: 217 x 135 x 100mm
