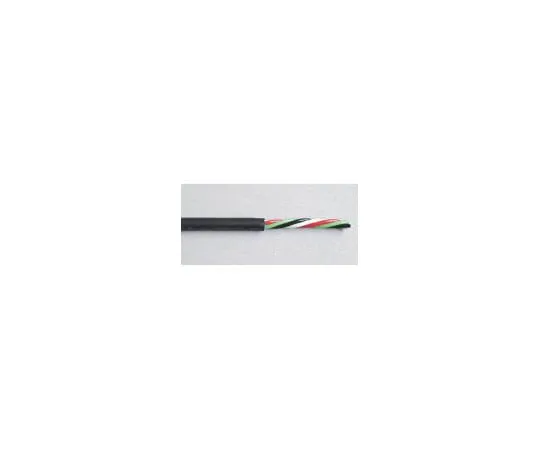

62-0683-45 Durable Power Supply Cable for Robot KDF-L (1.25Sq Outer Diameter 7.5mm) 1m KDF-L1.25SQ-3C
Product Description
Product Model: 62-0683-45Product Brand: FA Ubon Feature […]
Contact Us
Product Details
Product Model: 62-0683-45
Product Brand: FA Ubon
Features
- UL/cUL Standard Cable
- Oil Resistant, Flexion Resistant
- Application: Cable Bare Wiring
Spec
- Cut length: 1m
- Format: KDF-L 3C-1.25sq
- Conductor section size: 1.25sq
- Conductor configuration (piece/mm): 7/43/0.08
- Outer diameter: 7.5mm
- Allowable current: 18A
- Rating voltage: 300V
- Rating temperature: 105℃
- Test voltage: AC2000V, 1 min
- Fire retardancy: VW-1, FT1
- Applicable standard: UL AWM STYLE 2517 CAN/CSA-C22.2 No210
