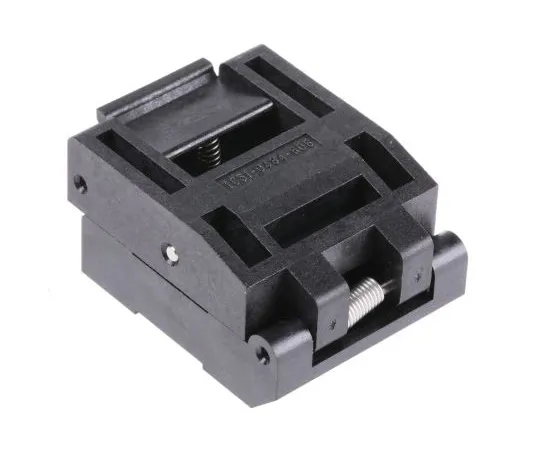

63-4927-78 Yamaichi 0.5mm Pitch 32 Way Through Hole QFN Test Sockets QFN11T032-003
Product Description
Product Model: 63-4927-78Product Brand: Yamaichi Featur […]
Contact Us
Product Details
Product Model: 63-4927-78
Product Brand: Yamaichi
Features
- QFN Test Sockets - Clamshell. Clamshell test sockets for QFN's Spring loaded hinged lid latches to retain ICs Easy, repeatable access for test purposes High reliability, durability and temperature range Body material Glass Filled PES; Glass Filled PEI Contact material Beryllium Copper Contact plating Gold over Nickel Insulation resistance 10,000 MΩ (At 100 Vdc) Withstand voltage 500Vac for 1 minute Contact resistance 30mΩ (at 10mA) Operating temperature -40°C to 150°C Contact force 11gf per pin approx. 0.5mm pitch
Spec
- Quantity：1piece
- Package Type : QFN
- G***er : Female
- Number of Contacts : 32
- Pitch : 0.5mm
- Body Orientation : Straight
- Contact Material : Beryllium Copper
- Contact Plating : Gold over Nickel
- Socket Mounting Type : Through Hole
- Termination Method : Solder
- Housing Material : PEI, PES
- CODE No.:665-9910
