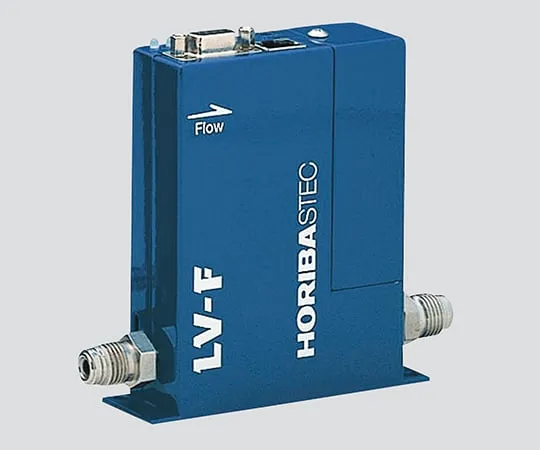

3-6254-01 Liquid Minimal Mass Flow Controller LV-F20PO-H20-0.02CCM
model:
3-6254-01
category:
toner
Product Description
Product Model: 3-6254-01 Features Possible to control o […]
Contact Us
Product Details
Product Model: 3-6254-01
Features
- Possible to control of very small flow rates down to micro liters.
- Adopt cooled measuring system that can perform accurate fluid control of liquid materials with low boiling point.
- Possible to accurate fluid control of high-viscosity liquid materials.
Spec
- Model number: LV-F20PO-H20-0.02CCM
- Flow rate (CCM): 0.02
- Fitting port diameter: Equivalent to 1/8swagelok
- Correspondence liquid type: Pure water
- Flow rate accuracy: +/- 1% F.S..
- Measurement range: 5 - 100% F.S..
- Response speed: 3 seconds or less (T98)
- Operation difference pressure: 0.05 - 0.3MPa
- *It can correspond to liquid types other than pure water. Please contact with us.
