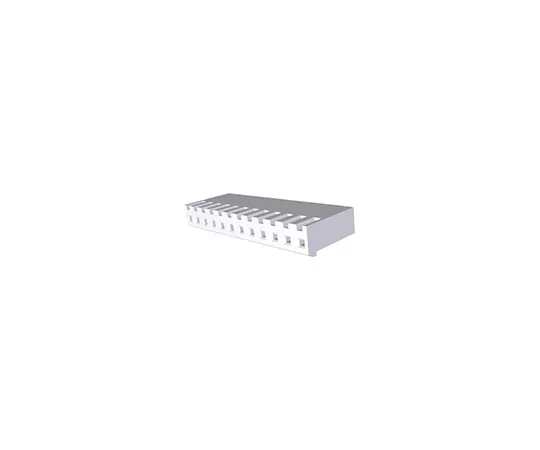

63-4919-58 TE Connectivity SL-156 Female Connector Housing, 3.96mm Pitch, 12 Way, 1 Row 1-640250-2
model:
63-4919-58
brand:
TE Connectivity
Product Description
Product Model: 63-4919-58Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4919-58
Product Brand: TE Connectivity
Features
- TE Connectivity 3.96mm SL-156 Series Housings. SL-156 series receptacle style wire to board housings made from UL94V-0 rated white nylon designed to mate with 1.14mm square or round post headers or staked posts on .156 centres (see MTA-156 flat, polarized and friction lock headers and staked posts). These SL-156 series housings are *** to *** stackable, accept a wire size range of 18 to 24 AWG and are available with locking ramp mating retention and polarizing tabs. Part numbers X-640250-X have a locking ramp Part numbers X-770849-X have both locking ramp and polarizing tabs For crimp contacts for these 3.96mm SL-156 series housings see stock number ; 680-1792 680-1792 typically.
Spec
- Quantity:1bag(10pieces)
- Number of Contacts : 12
- Number of Rows : 1
- Pitch : 3.96mm
- G***er : Female
- Mounting Type : Cable Mount
- Series : SL-156
- For Use With : Wire-to-Board Economy Power Connector
- Body Orientation : Straight
- Length : 47.52mm
- Width : 7.27mm
- Depth : 16.76mm
- Housing Material : Nylon
- CODE No.:660-5989
