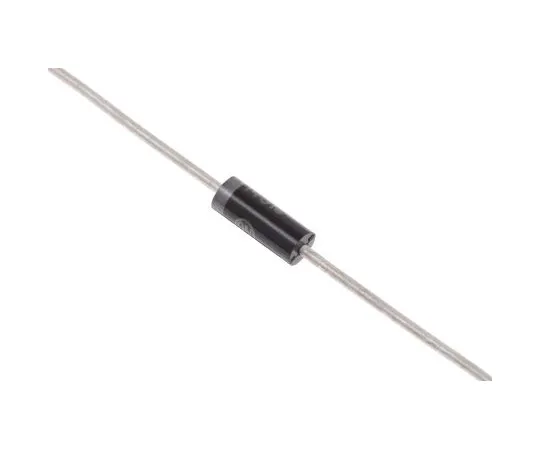

63-4918-01 ON Semiconductor, 9.1V Zener Diode 5% 5 W Through Hole 2-Pin DO-15 1N5346BRLG
model:
63-4918-01
brand:
ON Semiconductor
Product Description
Product Model: 63-4918-01Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4918-01
Product Brand: ON Semiconductor
Features
- Zener Diodes 5W Surmetic, 1N5347 to 1N5363 Series, ON Semiconductor. ON Semiconductor 1N53 series is Surmetic™ 40 axial-leaded 5 Watt zener diode This axial lead device features a molded package which is void-free transfer−molded, thermosetting plastic, offers protection in most common environmental conditions, The voltage regulator has tight limits and better operating characteristics that reflect the superior capabilities of silicon-oxide passivated junctions. The external surfaces are corrosion resistant and leads are readily solderable. Applications. Industrial
Spec
- Quantity：1bag(5pieces)
- Diode Configuration : Single
- Mounting Type : Through Hole
- Maximum Power Dissipation : 5 W
- Package Type : DO-15
- Zener Type : Voltage Regulator
- Zener Voltage Tolerance : 5%
- Pin Count : 2
- Test Current : 150mA
- Maximum Zener Impedance : 2Ω
- Maximum Reverse Leakage Current : 7.5µA
- Length : 8.89mm
- Dimensions : 8.89 x 3.68 x 3.68mm
- Minimum Operating Temperature : -65 °C
- CODE No.:654-7577
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4772-68 TE Connectivity Non-F***d Terminal Block, 4 Way/Pole, Screw Down Terminals, 30 → 12 AWG Cable Mount, Nylon, 300 796634-4
model: 63-4772-68
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
63-7541-11 TRACOPOWER TEN 15 15W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out ±12V dc TEN 15-2422
model: 63-7541-11
brand: TRACOPOWER
Electronic/Electrical Parts and Controll Equipments
63-4804-50 Fair-Rite Openable Ferrite Sleeve, 38.6 x 19.15 x 47.5mm, For EMI Suppression, Apertures: 1, Diameter 18.35mm 431176451
model: 63-4804-50
brand: Fair-Rite
Electronic/Electrical Parts and Controll Equipments

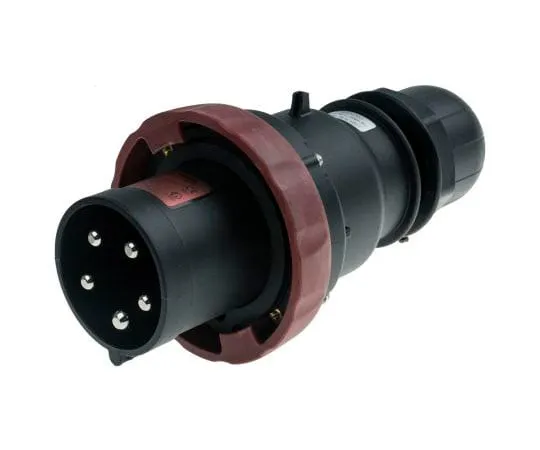

63-8064-73 3P+N+E IP66 ATEX Approved Power Connector, Plug, 63A 346 → 415 V ac 893-8063
