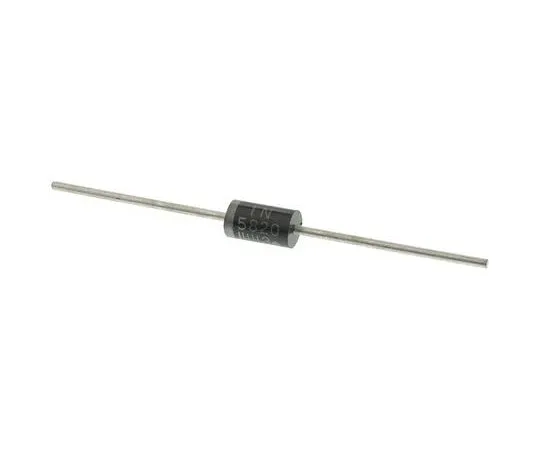

63-4917-93 ON Semi 20V 3A, Schottky Diode, 2-Pin DO-201AD 1N5820RLG 1N5820RLG
model:
63-4917-93
brand:
ON Semiconductor
Product Description
Product Model: 63-4917-93Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-4917-93
Product Brand: ON Semiconductor
Features
- Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified. ON Semiconductor Schottky Barrier Diodes. This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key. Pb-Free Designed for Optimal Automated Board Assembly Stress protection guarding Epoxy Moulded Case Lightweight 11.7mg package
Spec
- Quantity：1bag(10pieces)
- Diode Configuration : Single
- Number of Elements per Chip : 1
- Peak Reverse Repetitive Voltage : 20V
- Mounting Type : Through Hole
- Package Type : DO-201AD
- Diode Technology : Schottky
- Pin Count : 2
- Diameter : 5.3mm
- Peak Non-Repetitive Forward Surge Current : 80A
- CODE No.:654-7224
