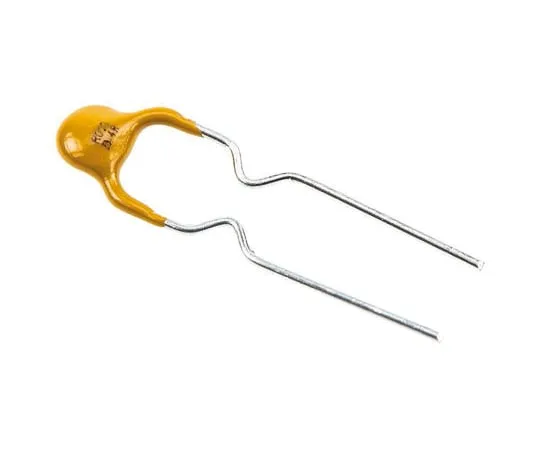

63-4915-30 Bourns 0.1A Hold current, Radial Leaded PCB Mount Resettable F***, 60V MF-R010
Product Description
Product Model: 63-4915-30Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4915-30
Product Brand: Bourns
Features
- MF-R Series. Radial leaded devices Rated at 40A except MF-R1100 which is rated at 100A Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
Spec
- Quantity：1bag(10pieces)
- Lead Orientation : Radial
- Trip Current : 200mA
- Time to Trip : 4s
- Hold Current : 0.1A
- Voltage Rating : 60V
- Maximum Current : 40 A
- Minimum Resistance : 2.5Ω
- Maximum Resistance : 7.5Ω
- Power Dissipation : 0.38W
- Body Height : 12.7mm
- Body Length : 7.4mm
- Body Width : 3.1mm
- Wire Pitch : 5.1mm
- Wire Length : 7.6mm
- Wire Diameter : 0.51mm
- CODE No.:647-8415
