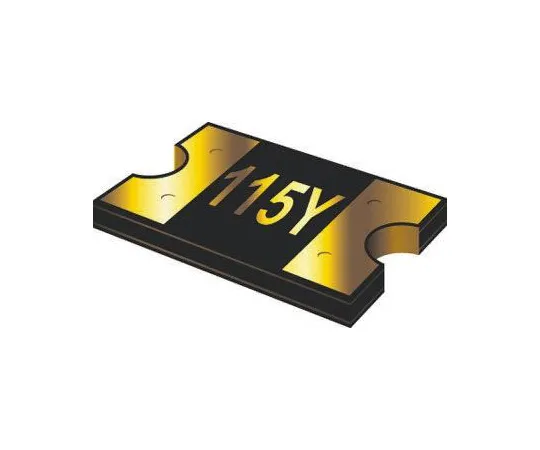

63-4915-24 Bourns 1.1A Surface Mount Resettable F***, 6V MF-NSMF110-2
Product Description
Product Model: 63-4915-24Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4915-24
Product Brand: Bourns
Features
- MF-NSMF Series. Compact design to save board space - 1206 footprint Small size results in very fast time to react to fault events Symmetrical design Low profile
Spec
- Quantity：1bag(10pieces)
- Trip Current : 2.2A
- Voltage Rating : 6V
- Time to Trip : 0.1s
- Hold Current : 1.1A
- Maximum Current : 100 A
- Length : 3.4mm
- Height : 0.7mm
- Width : 1.8mm
- Terminal Material : Electroless Nickel Immersion Gold
- Minimum Resistance : 0.06Ω
- Maximum Resistance : 200mΩ
- Power Dissipation : 0.6W
- Minimum Operating Temperature : -40°C
- Package Size : 1206
- Dimensions : 3.4 x 1.8 x 0.7mm
- CODE No.:647-8314
