Electronic/Electrical Parts and Controll Equipments

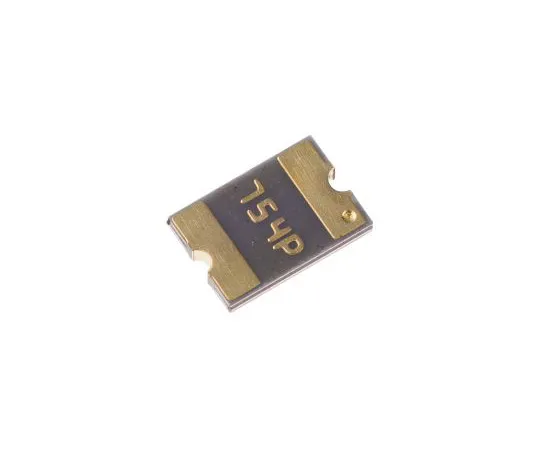

63-4915-20 Bourns 0.75A Surface Mount Resettable F***, 24V MF-MSMF075/24-2
Product Description
Product Model: 63-4915-20Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4915-20
Product Brand: Bourns
Features
- MF-MSMF Series. Compliant with AEC-Q200 Rev-C- Stress Test Qualification for Passive Components in Automotive Applications 100 % electrically compatible with all previous generations of 1812 SMT devices Compatible with Pb and Pb-free solder reflow profiles Surface mount packaging for automated assembly
Spec
- Quantity：1bag(10pieces)
- Trip Current : 1.5A
- Voltage Rating : 24V
- Time to Trip : 0.2s
- Hold Current : 0.75A
- Maximum Current : 40 A
- Length : 4.73mm
- Height : 0.85mm
- Width : 3.41mm
- Terminal Material : Electroless Nickel Immersion Gold
- Minimum Resistance : 0.11Ω
- Maximum Resistance : 450mΩ
- Power Dissipation : 0.8W
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Operating Temperature Range : -40 → +85 °C
- CODE No.:647-8184
