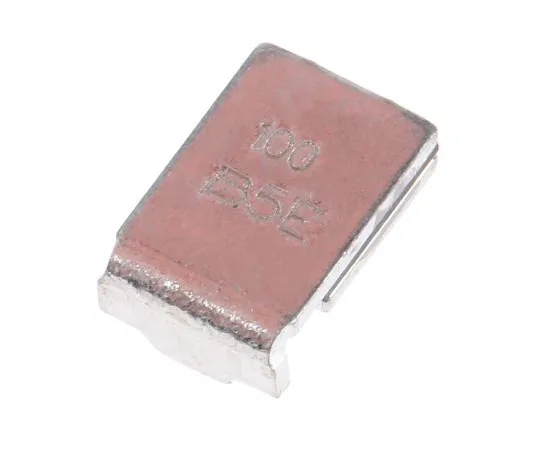

63-4915-14 Bourns 1.1A Surface Mount Resettable F***, 30V MF-SM100-2
Product Description
Product Model: 63-4915-14Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-4915-14
Product Brand: Bourns
Features
- MF-SM Series. Fully compatible with current industry standards Self-resetting on removal or reduction of trip current Packaged per EIA 481-2 standard
Spec
- Quantity：1bag(10pieces)
- Trip Current : 2.2A
- Voltage Rating : 30V
- Time to Trip : 0.5s
- Hold Current : 1.1A
- Maximum Current : 80 A
- Length : 7.98mm
- Height : 3mm
- Width : 5.44mm
- Terminal Material : Tin Plated Brass
- Minimum Resistance : 0.12Ω
- Maximum Resistance : 480mΩ
- Power Dissipation : 1.7W
- Minimum Operating Temperature : -40°C
- Package Size : 2920
- Dimensions : 7.98 x 5.44 x 3mm
- CODE No.:647-8033
