Electronic/Electrical Parts and Controll Equipments

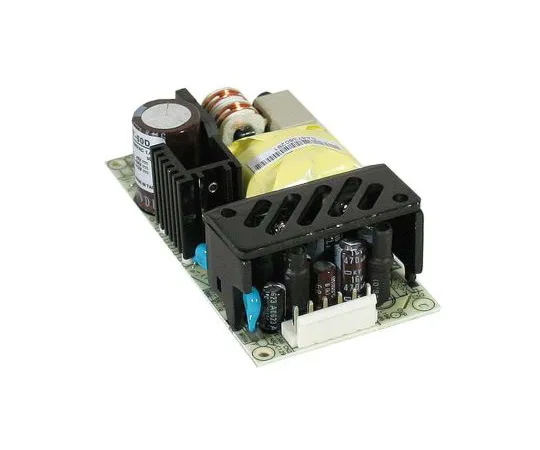

63-4913-37 Mean Well 50W Triple Output Embedded Switch Mode Power Supply SMPS, 1.5 A, 4 A, 500 mA, 5/±15V dc Medical Approved Open RPT-60C
Product Description
Product Model: 63-4913-37Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4913-37
Product Brand: Mean Well
Features
- EN 60601-1, UL 60601-1. TUV, CB, UL recognised component for Canada ; US. De-rating 2% per°C above 40°C. MTBF to MIL-HDBK-217F (25°C). 2. RPT-60 Series, Universal Input, 2x4inch, Triple Output. Miniature size 2x4 inch, high power density High efficiency, long life and high reliability Universal input voltage 90-264Vac, 127-370Vdc Medical safety approved Low leakage current ;200μA Harmonic current compliance to EN 61000-3-2 EMC meets EN 55022 Class B Short circuit, overload and overvoltage protection 10% extra 'peak current' rating for 10 seconds, on all outputs
Spec
- Quantity：1piece
- Output Voltage : 5/±15V dc
- Output Current : 1.5 A, 4 A, 500 mA
- Power Rating : 50W
- Number of Outputs : 3
- Input Voltage : 127 → 370 V dc, 90 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 101.6mm
- Width : 50.8mm
- Depth : 29mm
- Weight : 150g
- Maximum Temperature : +65°C
- Medical Approved : Yes
- CODE No.:644-7247
