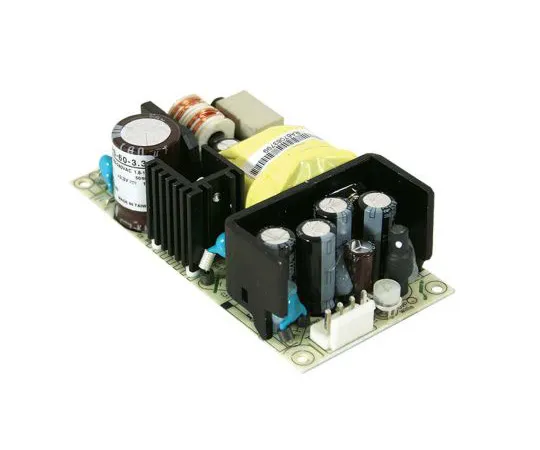

63-4913-35 Mean Well 60W 1 Output Embedded Switch Mode Power Supply SMPS, 2.5A, 24V dc Medical Approved Open Frame RPS-60-24
Product Description
Product Model: 63-4913-35Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4913-35
Product Brand: Mean Well
Features
- EN 60601-1, UL 60601-1. TUV, CB, UL recognised component for Canada ; US. De-rating 2% per °C above 50°C. MTBF to MIL-HDBK-217F (25°C). 3. RPS-60 Series, Universal Input, 2x4inch, Single Output. Miniature size 2x4 inch, high power density High efficiency, long life and high reliability Universal input voltage 90-264Vac, 127-370Vdc Energy saving power supply No load power consumption ;0.75W Medical safety approved Low leakage current ;200μA Adjustable output voltage (-5 to +10%) Harmonic current compliance to EN 61000-3-2 EMC meets EN 55022 Class B Short circuit, overload and overvoltage protection 10% extra 'peak current' rating for 10 seconds
Spec
- Quantity：1piece
- Output Voltage : 24V dc
- Output Current : 2.5A
- Power Rating : 60W
- Number of Outputs : 1
- Input Voltage : 127 → 370 V dc, 90 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Open Frame
- Length : 101.6mm
- Width : 50.8mm
- Depth : 29mm
- Weight : 150g
- Maximum Temperature : +70°C
- Medical Approved : Yes
- CODE No.:644-7180
