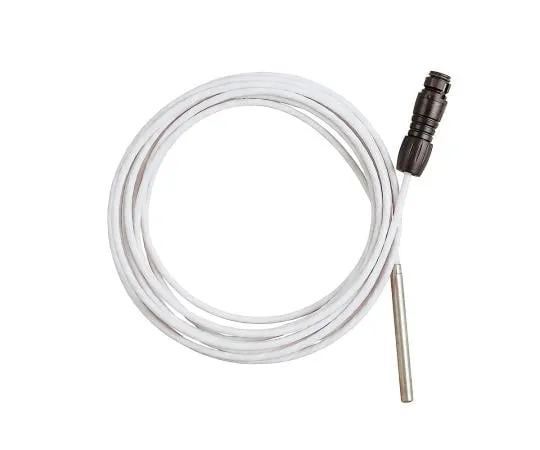

3-6945-14 Multi-Use USB Logger High Precision Model Replacement Sensor TPX-310-P1
Product Description
Product Model: 3-6945-14Product Brand: ebro Features De […]
Contact Us
Product Details
Product Model: 3-6945-14
Product Brand: ebro
Features
- Device is connected to USB port to automatically create PDF data on your PC.
- Possible to simply *** the free online configurator without having to install any software.
Spec
- Model number: TPX-310-P1
- Specification: Replacement sensor
- Measurement range: -200 to +200℃
- Size: Needle/φ5 x 45mm, Cable/3m
- Measurement range/operation temperature: -30 to +75℃
- Accuracy: ±0.2℃ (- 30 to +30℃), ±0.5℃ (other measurement range)
- Resolution: 0.1℃
- Sensor: PT1000
- Memory capacity: 120,000
- Sample rate: 1 seconds - 24 hours
- Measurement mode: Endless measurement, start/stop, measurement up to the maximum memory capacity, measurement start by pressing key
- Display: Measured value, Minimum/maximum value, Memory remaining amount, Alarm ON/OFF
- Housing material: PC (polycarbonate)
- Power supply: CR2450 lithium button battery x 1 piece (included for test)
- Protection grade: IP65
