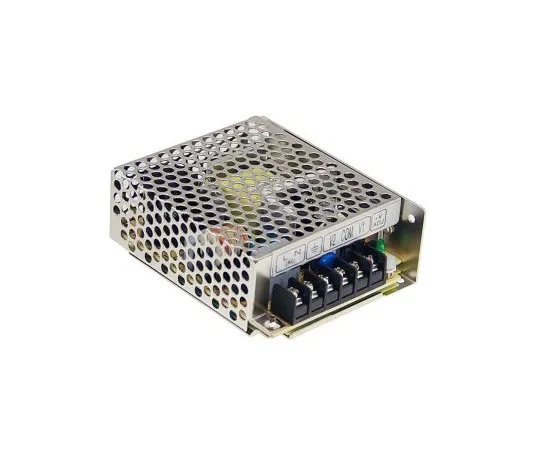

63-4913-26 Mean Well 35W 1 Output Embedded Switch Mode Power Supply SMPS, 7A, 5V dc Enclosed RS-35-5
Product Description
Product Model: 63-4913-26Product Brand: Mean Well Featu […]
Contact Us
Product Details
Product Model: 63-4913-26
Product Brand: Mean Well
Features
- EN60950, UL60950. UL recognised, TUV, CB. De-rating 2% per °C above 50°C on all types except; RD50,65,125,RS-75-3.3 types de-rating 2% per °C above 45°C. RD85,RS-100-3.3,RS-150-3.3 and 5 de-rating 2% per °C above 40°C. 3. 25W to 150W, Universal Input, Single and Dual Outputs. High efficiency, long life and high reliability Miniature size, high power density High operating temperature up to 70°C 105°C long life electrolytic capacitors Easy installlation - screw terminals Adjustable output voltage for single output types, 10.8 - 13.2V at 12V and 22 - 27.6V at 24V Adjustable output voltage for dual output types on output 1, -5% to +10% Dual outputs have a minimum load requirement, see output current data (within datasheet). The total load must not exceed the rated output power Harmonic current compliance to EN 61000-3-2 EMC meets EN 55022 Class B Short circuit, overload and overvoltage protection
Spec
- Quantity:1piece
- Output Voltage : 5V dc
- Output Current : 7A
- Power Rating : 35W
- Number of Outputs : 1
- Input Voltage : 125 → 373 V dc, 88 → 264 V ac
- Mounting Type : Chassis Mount
- Package Type : Enclosed
- Length : 99mm
- Width : 82mm
- Depth : 36mm
- Weight : 300g
- Efficiency : 80.5%
- Maximum Temperature : +70°C
- Minimum Temperature : -25°C
- CODE No.:644-6957
