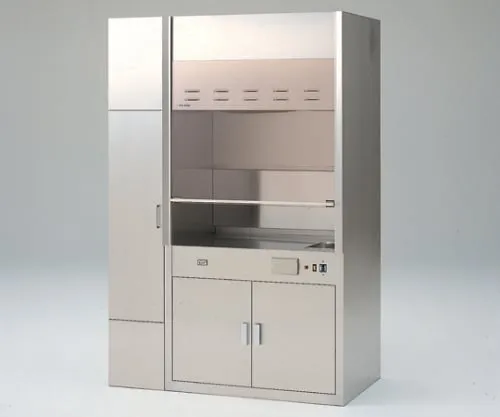

3-5335-31 Compact Draft 900 S (Stainless Steel/Dry Type Scrubber Integrated Type) with Plumbing and Draining and Acid Resistant Fan CD9S-W-L
Product Description
Product Model: 3-5335-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-5335-31
Product Brand: AS ONE Corporation
Features
- Wide work plane makes working in draft easier.
- Draft with an activated carbon adsorption filter.
- The adsorbent can be selected according to the target gas, enabling treatment with high removal efficiency.
- The adsorbent is a capsule cartridge type and can be easily removed and replaced.
- The door is a balance weight type, and the vertical direction can be stopped at any position.
- The inverter type ***s an inverter-controlled motor fan, and the exhaust air volume can be adjusted.
- LED lighting is ***d to save power.
Spec
- Fan Specification: Acid-Resistant Fan
- Plumbing: Yes
- Material: Body/Scrubber/SUS304, Door/Transparent PVC
- External Dimensions: 1200 x 715 x 1873 mm
- Sash Opening: 820 x 625 mm
- Equal Load Capacity: Work Surface/50 kg, Inside Stand/50 kg
- Interior Lighting: LED Lamp (7W) x 1
- Operating volume: Approx. 80dB
- Surface speed: approximately 0.5 m/s (with 1/2 door opening)
- Exhaust air volume: Approx. 8m3/min (at 1/2 door opening) * May vary dep***ing on the work environment
- Power: 100 VAC 50/60Hz 15 A
- Power cord length: 2.5 m
- Service Outlets: 2 x 100 VAC 3P up to 8 A
- Weight: Approx. 160 kg
- Applicable Duct Diameter: Φ200 m
- Effective Inner Dimensions: 898 x 608 x 800 mm
- Water Supply Connection Port: Rp1/2 (Outer Diameter Φ16 mm, Bamboo Shoot Included)
- Accessories: Supply/Drain Hose 2 m x 1 Each
- *Replacement activated carbon filter 4GM for neutral gas is included.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
