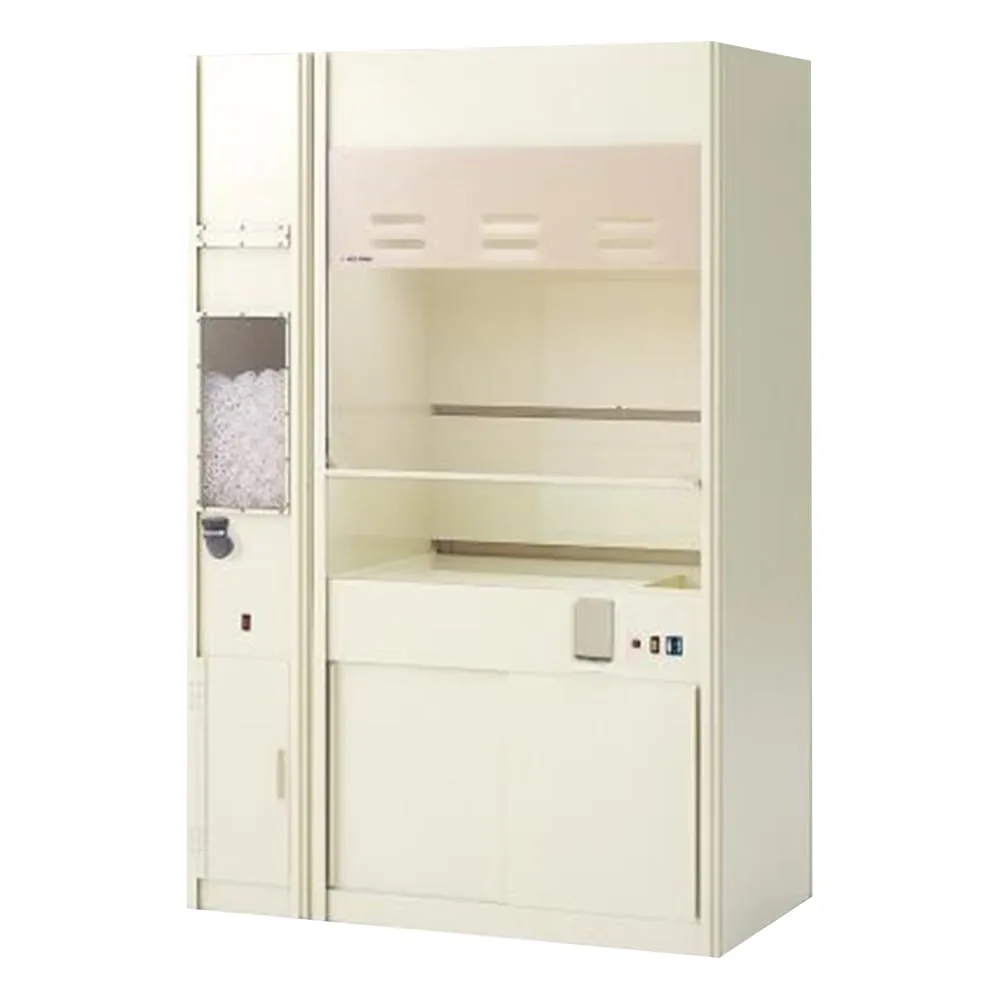

3-5334-31 Compact Draft 900P (PVC/Wet Scrubber Integrated Type) with Plumbing and Draining and Acid Resistant Fan CD9P-WTS-L
Product Description
Product Model: 3-5334-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-5334-31
Product Brand: AS ONE Corporation
Features
- Since a wide work surface is secured, work within draft is effective.
- Has excellent acid resistance and is suitable for acid gas treatment.
- The door is a balance weight type and can be stopped at any position in the vertical direction.
- LED lighting is ***d to save power.
Spec
- Fan Specification: Acid-Resistant Fan
- Plumbing: Yes
- Material: Body/Scrubber/Exhaust Fan/PVC, Door/Transparent PVC
- External Dimensions: 1200 x 685 x 1800 (2080 when Door is Fully Open) mm
- Effective Inner Dimensions: 894 x 600 x 857 mm
- Sash Opening: 820 x 625 mm
- Workplane Equal Load Capacity: 30 kg
- Interior Lighting: LED Lamp (7W) x 1
- Exhaust air volume: Approx. 8m3/min(With 1/2 Door Open, Surface Velocity Approx. 0.5 m/s, No Load) * May vary dep***ing on the work environment
- Operating noise: Approx. 70dB
- Power: 100 VAC 50/60Hz 15 A
- Power Cord: 2.5 m (3P Plug)
- Weight: Approx. 110 kg
- Applicable Duct Diameter: Φ200 mm
- Water Supply Connection Port: Rp1/2 (Outer Diameter Φ16 mm, Bamboo Shoot Included)
- Drain: 20 A Pipe Stop (With 2 m Bellows Hose) < Scrubber Part >
- Cleaning column filler: PP
- Cleaning Tank: Material/PVC, Tank Capacity/Approx. 65 L, Liquid Amount (MAX)/Approx. 45 L
- Water Supply Valve Connection Diameter: 20 A (Valve Socket Stopper)
- Drain Valve Connection Diameter: 20 A (Socket Stop)
- Service Outlets: 100 VAC 3P x 2, Up to 4 A Possible
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Not suitable for *** when application for local exhaust ventilation is required.
