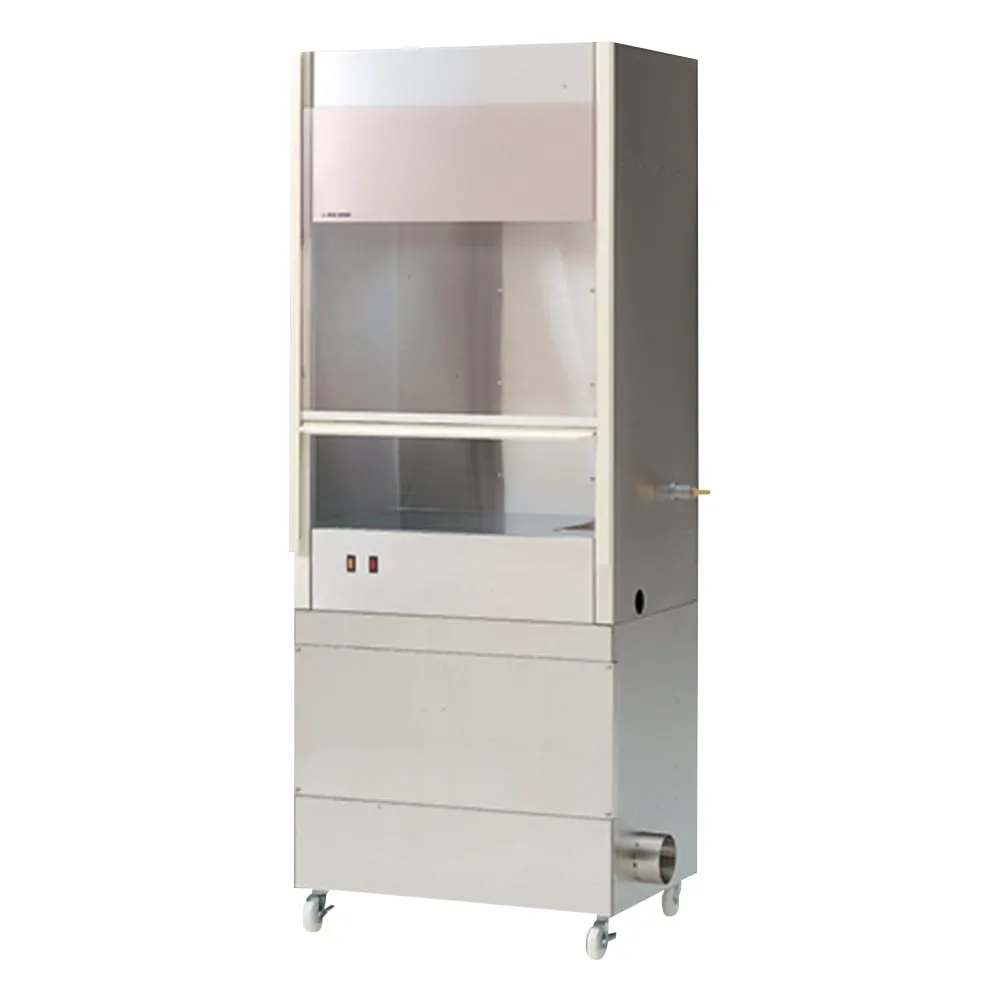

3-5333-31 Compact Draft 700 S (Stainless Steel/Wet Scrubber Integrated Type) with Plumbing and Draining, and Standard Fan CD7S-W-L
Product Description
Product Model: 3-5333-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-5333-31
Product Brand: AS ONE Corporation
Features
- Compact draft with integrated activated carbon adsorption filter.
- The adsorbent can be selected according to the target gas, enabling treatment of exhaust gas with high removal efficiency.
- The adsorbent is a capsule cartridge type and can be easily removed and replaced.
- The door is a balance weight system, and the vertical direction can be stopped at any position.
- Equipped with a slide damper in the draft, the exhaust air volume can be adjusted.
- LED lighting is ***d to save power.
Spec
- Fan Specifications: Standard Fan
- Plumbing: Yes
- Material: Body/Scrubber/SUS304, Door/Transparent PVC
- External Dimensions: 700 x 625 x 1800 mm
- Effective Inner Dimensions: 698 x 498 x 675 mm
- Sash Opening: 620 x 600 mm
- Workplane Equal Load Capacity: 20 kg
- Filter (Filler) Weight: Approx. 750 g/Piece
- Interior Lighting: LED Lamp (7W) x 1
- Air volume: 4m3/min(Door 1/3 Open, Surface Speed 0.5 m/s, No Load) * May vary dep***ing on the work environment
- Power: 100 VAC 50/60Hz
- Power Cord Length: 2.5 m (3P Plug)
- Power consumption: 140/215W at 50/60Hz
- Operating noise: Approx. 65dB
- Weight: Approx. 78 kg
- Applicable Duct Diameter: Φ100 mm
- Water Supply Connection Port: Rp1/2 (Outer Diameter Φ16 mm, Bamboo Shoot Included)
- Drain: φ 30 mm x Hose 2 m Included
- *Replacement activated carbon filter for neutral gas is included.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
- *Not suitable for *** when application for local exhaust ventilation is required.
