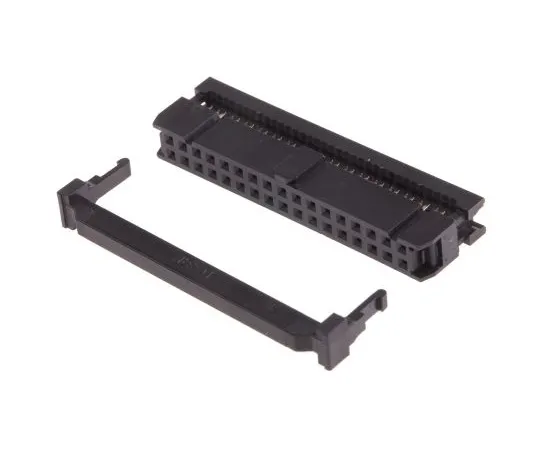

63-4910-66 RS Pro 34-Way IDC Connector Socket for Cable Mount, 2-Row 642-4985
Product Description
Product Model: 63-4910-66Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4910-66
Product Brand: RS PRO
Features
- Unpolarised Standard Sockets. Connectable to standard Speedbloc headers and cable plugs Cable strain relief supplied 0.8μm gold plated contacts Use bench press, stock no. ; 254-850 254-850 adaptor kit, see stock no.'s: ; 426-3160 426-3160 and ; 426-3198 426-3198
Spec
- Quantity：1piece
- Number of Contacts : 34
- Number of Rows : 2
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDT
- Current Rating : 1A
- Contact Plating : Gold over Nickel
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +105°C
- Voltage Rating : 500 V dc
- Contact Material : Phosphor Bronze
- CODE No.:642-4985
