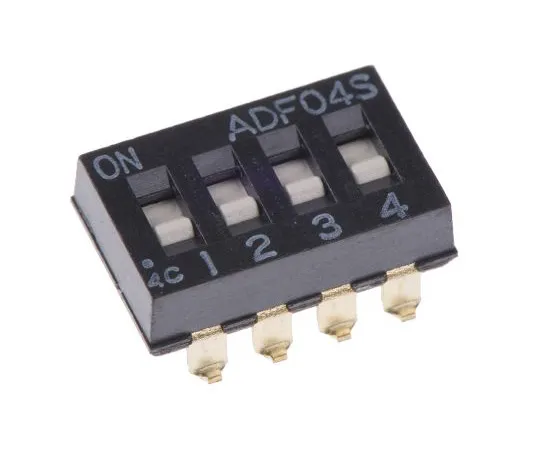

63-4909-64 4 Way Surface Mount DIP Switch 4P ADF04S04
model:
63-4909-64
brand:
TE Connectivity
Product Description
Product Model: 63-4909-64Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4909-64
Product Brand: TE Connectivity
Features
- Flush Actuator Slide Switches. High pressure wiping contact for aqueous or solvent cleaning without tape seal Can withstand vapour phase reflow or wave soldering conditions Contact resistance: 50mΩ Insulation resistance: 1000 MΩ @100 Vdc Mechanical life: 1000 cycles
Spec
- Quantity：1piece
- Contact Configuration : 4P
- Contact Current Rating : 100 mA@ 24 V dc
- Contact Material : Gold over Nickel Plated Copper Alloy
- Number of Positions : 4
- Mounting Type : Surface Mount
- Actuator Type : Slide
- Package Style : DIP
- Maximum Operating Temperature : +85°C
- Minimum Operating Temperature : -30°C
- Operating Temperature Range : -30 → +85°C
- CODE No.:639-4733
