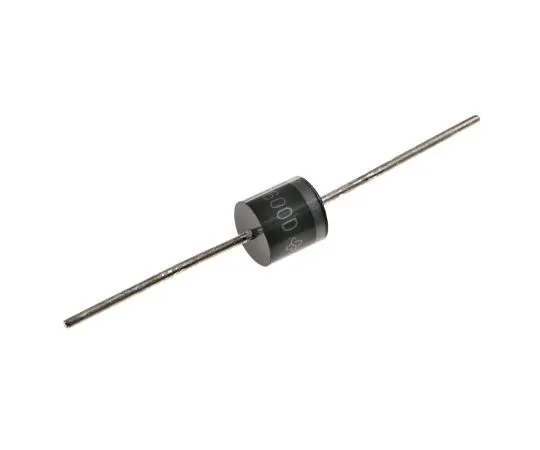

63-4909-50 Vishay 200V 6A, Silicon Junction Diode, 2-Pin P600 P600D-E3/54 P600D-E3/54
Product Description
Product Model: 63-4909-50Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4909-50
Product Brand: Vishay
Features
- Vishay P600A-P600M General Purpose Plastic Rectifiers. The Vishay P600x are a series of general purpose plastic rectifiers in a P600 epoxy package. They are designed for general purpose rectification of power supplies, inverters, converters and freewheeling diodes. Features: Low voltage drop Low leakage current High forward current and surge capabilities What is the operating junction temperature? -50°C to +150°C Versions Available: P600A - 50V P600B - 100V P600D - 200V P600G - 400V P600J - 600V P600K - 800V P600M - 1000V
Spec
- Quantity：1bag(5pieces)
- Maximum Continuous Forward Current : 6A
- Rectifier Type : Switching
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Through Hole
- Package Type : P600
- Diode Technology : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1.3V
- Peak Reverse Recovery Time : 2.5µs
- Diameter : 9.1mm
- Peak Non-Repetitive Forward Surge Current : 400A
- CODE No.:639-1548
