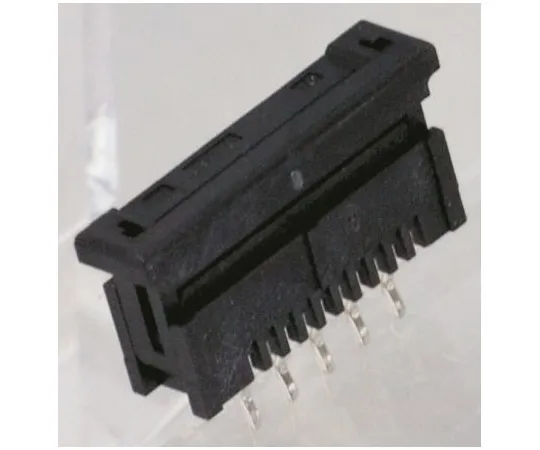

63-4909-32 JST 1mm Pitch 14 Way Straight Female FPC Connector 14FMZ-BT (LF)(SN)
Product Description
Product Model: 63-4909-32Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4909-32
Product Brand: JST
Features
- JST FMZ series 1.0mm FFC Connectors. The FMZ range of ZIF (zero insertion force) FFC connectors from JST was developed to increase wear resistance and ext*** the mating life of the connectors. They feature a double-leaf contact construction which provides a stable connection and enhances reliability. Both top and side entry versions are available, with from 6 to 30 ways.. Voltage rating: 50V ac/dc Current rating: 0.5A Initial contact resistance: ; 20mΩ Zero insertion force mechanism Double leaf contacts UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 14
- Contact Material : Phosphor Bronze
- Pitch : 1mm
- Mounting Type : Through Hole
- G***er : Female
- Body Orientation : Straight
- Current Rating : 500mA
- Voltage Rating : 50 V ac/dc
- Number of Rows : 1
- Contact Plating : Tin over Copper
- Minimum Operating Temperature : -25°C
- CODE No.:638-8867
