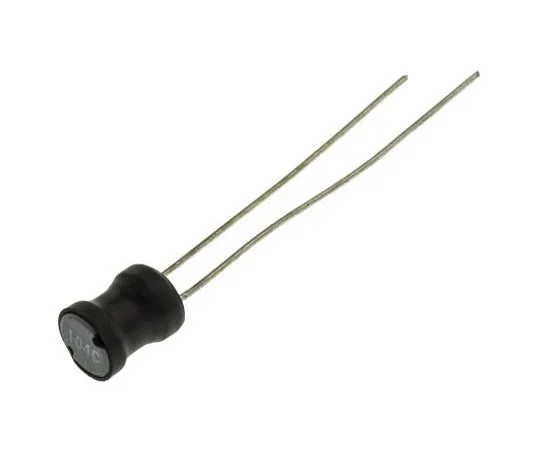

63-4909-19 Murata 100 μH ±10% Leaded Inductor, Max SRF:7MHz, Q:90, 670mA Idc, 390mΩ Rdc 2200R 22R104C
model:
63-4909-19
brand:
Murata Power Solutions
Product Description
Product Model: 63-4909-19Product Brand: Murata Power So […]
Contact Us
Product Details
Product Model: 63-4909-19
Product Brand: Murata Power Solutions
Features
- Murata 22R Series Radial Inductor. Resin coated miniature general purpose radial wire ***ed RF inductors Their small size makes them particularly suitable for d.c. supply line filtering and low power switching regulator applications Operating temperature: -25 → +70°C Height 45mm, Dia. 7.2mm, Lead Dia. 0.6mm
Spec
- Quantity：1bag(10pieces)
- Inductance : 100 μH
- Maximum DC Current : 670mA
- Mounting Type : Radial
- Maximum DC Resistance : 390mΩ
- Tolerance : ±10%
- Length : 7.7mm
- Height : 10.5mm
- Maximum Self Resonant Frequency : 7MHz
- Lead Pitch : 3mm
- Series : 2200R
- Minimum Quality Factor : 90
- CODE No.:638-7785
