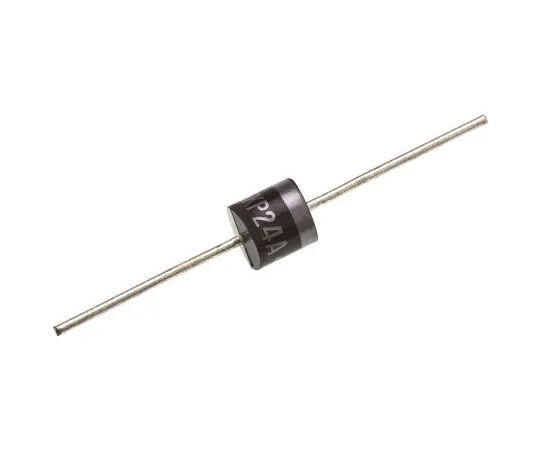

63-4909-17 Vishay 5KP24A-E3/54, Uni-Directional TVS Diode, 5000W, 2-Pin P600 5KP24A-E3/54
Product Description
Product Model: 63-4909-17Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4909-17
Product Brand: Vishay
Features
- TRANSZORB® Transient Voltage Suppressors Axial Unidirectional 5000W, Vishay Semiconductor. P600 package with glass passivated junction Excellent clamping capability Very fast response time Low incremental surge resistance Automotive AEC-Q101 qualified
Spec
- Quantity：1bag(5pieces)
- Diode Configuration : Single
- Maximum Clamping Voltage : 38.9V
- Minimum Breakdown Voltage : 26.7V
- Mounting Type : Through Hole
- Package Type : P600
- Maximum Reverse Stand-off Voltage : 24V
- Pin Count : 2
- Peak Pulse Power Dissipation : 5000W
- Maximum Peak Pulse Current : 129A
- Number of Elements per Chip : 1
- Minimum Operating Temperature : -55 °C
- Maximum Operating Temperature : +175 °C
- Maximum Reverse Leakage Current : 2µA
- CODE No.:638-7763
