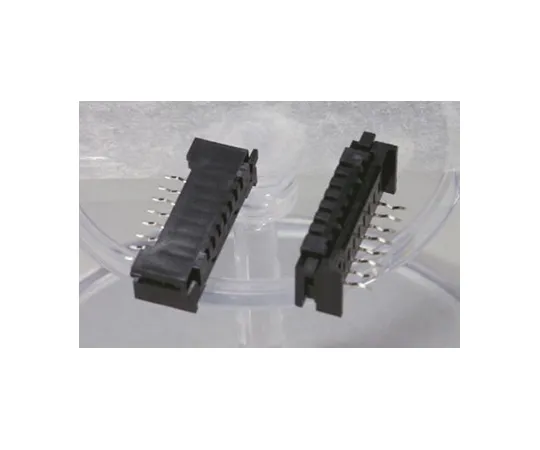

63-4909-08 JST 2.54mm Pitch 12 Way Straight Female FPC Connector, ZIF Vertical Contact 12FDZ-BT(S)(LF)(SN)
Electronic/Electrical Parts and Controll Equipments

63-4909-08 JST 2.54mm Pitch 12 Way Straight Female FPC Connector, ZIF Vertical Contact 12FDZ-BT(S)(LF)(SN)

model: 63-4909-08
brand: JST

Product Description

Product Model: 63-4909-08Product Brand: JST Features JS […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4909-08
Product Brand: JST

Features

  • JST FDZ series 2.54mm FPC Connectors. The FDZ range of ZIF (zero insertion force) FPC connectors from JST is designed for *** with FPC and membrane switch leads. The contacts are double-sided to ensure greater reliability and when inserted, the leads are securely held and locked by moving a slide. Both top and side entry versions are available, with from 5 to 17 ways. The connectors are suitable for *** with 2.54mm pitch 125 micron thick FPCs and membrane conductors. Voltage rating: 250V ac/dc Current rating: 1A Initial contact resistance: ; 30mΩ Zero insertion force and high contact pressure Snap-in connections UL Recognized E60389 CSA Certified LR20812 RoHS Compliant

Spec

  • Quantity:1bag(10pieces)
  • Number of Contacts : 12
  • Contact Material : Phosphor Bronze
  • Pitch : 2.54mm
  • Mounting Type : Through Hole
  • G***er : Female
  • Termination Type : ZIF Vertical Contact
  • Body Orientation : Straight
  • Current Rating : 1A
  • Voltage Rating : 250 V ac/dc
  • Number of Rows : 1
  • Contact Plating : Tin over Copper
  • Housing Material : PBT
  • CODE No.:638-7224
