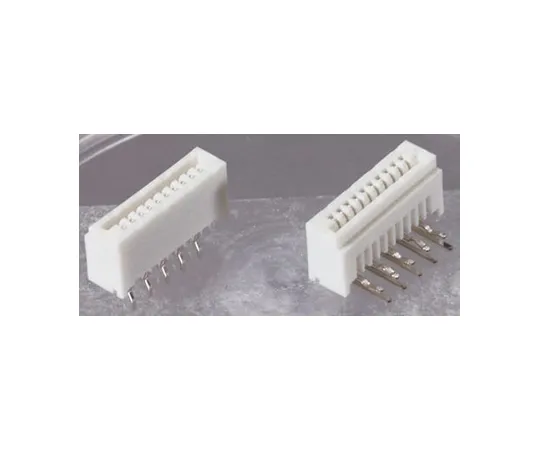

63-4908-68 JST 1.25mm Pitch 11 Way Straight Female FPC Connector 11FE-BT-VK-N
Product Description
Product Model: 63-4908-68Product Brand: JST Features 1. […]
Contact Us
Product Details
Product Model: 63-4908-68
Product Brand: JST
Features
- 1.25mm FFC Connectors, JST FE Series. A range of compact 1.25mm pitch FFC (flexible flat cable) connectors from JST. The FE series ensures easy, secure cable connection with smooth insertion and reliable contact performance. The connectors are available with from 4 to 40 ways, in both straight (top-entry) and right-angle (side-entry) styles. Voltage rating: 100V ac/dc Current rating: 1A Initial contact resistance: ; 20mΩ Low insertion force and high contact pressure Snap-in connections UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
Spec
- Quantity:1bag(10pieces)
- Number of Contacts : 11
- Contact Material : Copper Alloy
- Pitch : 1.25mm
- Mounting Type : Through Hole
- G***er : Female
- Body Orientation : Straight
- Current Rating : 1A
- Voltage Rating : 200 V ac/dc
- Number of Rows : 2
- Contact Plating : Lead, Tin
- Termination Method : Solder
- CODE No.:638-6495
