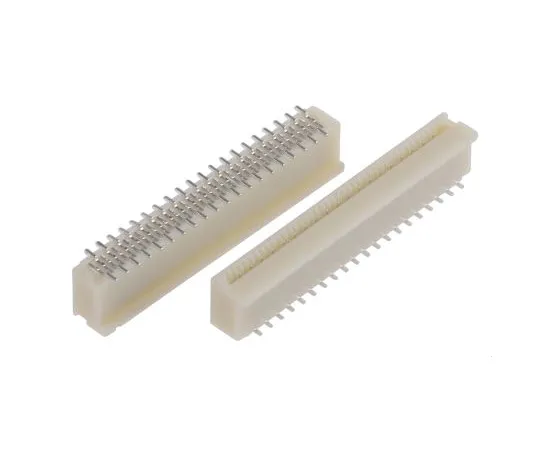

63-4908-60 JST 0.5mm Pitch 40 Way Straight SMT Female FPC Connector, ZIF Vertical Contact 40FLT-SM2-TB(LF)(SN)
Product Description
Product Model: 63-4908-60Product Brand: JST Features JS […]
Contact Us
Product Details
Product Model: 63-4908-60
Product Brand: JST
Features
- JST FLT series 0.5mm FPC Connectors. The FLT range of FPC connectors from JST are designed for *** with 0.5mm pitch FPC and membrane switch leads. These top entry SMT-mounting connectors are made from heat resistant plastic to allow for reflow soldering. They feature low insertion force and have staggered surface mount tails. Features ; Benefits. Voltage rating: 50V ac/dc Current rating: 0.5A Initial contact resistance: ; 50mΩ Low insertion force Staggered SMT tails on 1.0mm pitch UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
Spec
- Quantity：1bag(10pieces)
- Number of Contacts : 40
- Contact Material : Phosphor Bronze
- Pitch : 0.5mm
- Mounting Type : Surface Mount
- G***er : Female
- Termination Type : ZIF Vertical Contact
- Body Orientation : Straight
- Current Rating : 500mA
- Voltage Rating : 50 V ac/dc
- Number of Rows : 1
- Contact Plating : Tin over Copper
- Maximum Operating Temperature : +85°C
- CODE No.:638-6417
