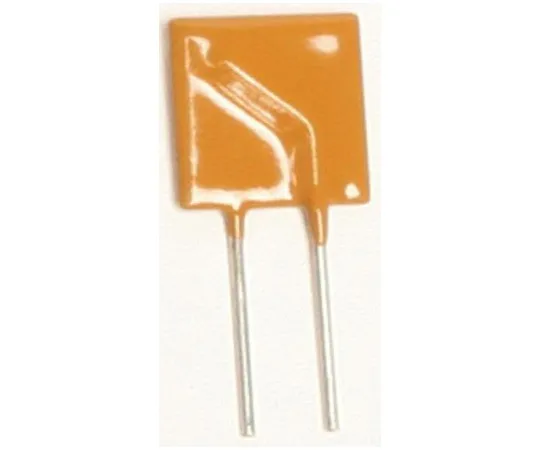

63-4906-52 Board Mounted with Lead Wire, Resettable F*** Nidec 4A (Operating Current 8 A) 1 Bag (5 Pieces) PRCP-R400-0-99
model:
63-4906-52
brand:
Copal Electronics
Product Description
Product Model: 63-4906-52Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4906-52
Product Brand: Copal Electronics
Features
- Resettable f*** terminal insertion type
- Terminal insertion type with fast break characteristics
Spec
- Number of Pieces: 1 Bag (5 Pieces)
- Lead Direction: Radial
- Operating current: 8 A
- Operating time: 12.7 s
- Holding current: 4A
- Rated voltage: 30 V
- Current mAx: 40 A
- Minimum resistance: 0.01 Ω
- Maximum resistance: 50 mΩ
- Power Loss: 2.5 W
- Body Height: 24.8 mm
- Body Length: 14.4 mm
- Body Width: 3 mm
- Wire pitch: 5.1 mm
- Wire Length: 7.6 mm
- Wire Diameter: 0.81 mm
- RoHS Compliance Status: Compliance
- Securities Code: 637-6482
