Electronic/Electrical Parts and Controll Equipments

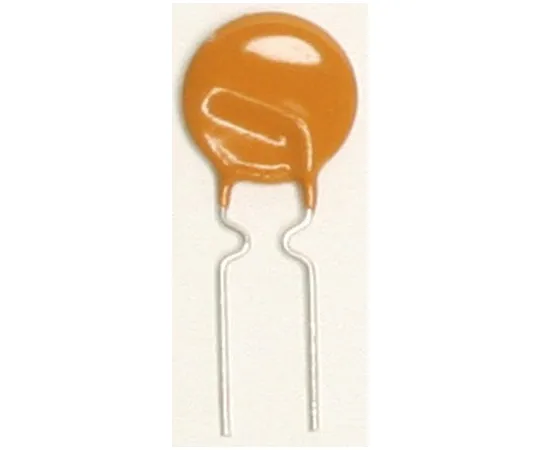

63-4906-39 Board Mounted with Lead Wire, Resettable F*** Nidec 0.4 A (Operating Current 800 mA) 1 Bag (10 Pieces) PRCP-R040-0-99
model:
63-4906-39
brand:
Copal Electronics
Product Description
Product Model: 63-4906-39Product Brand: Copal Electroni […]
Contact Us
Product Details
Product Model: 63-4906-39
Product Brand: Copal Electronics
Features
- Resettable f*** terminal insertion type
- Terminal insertion type with fast break characteristics
Spec
- Number of Pieces: 1 Bag (10 Pieces)
- Lead Direction: Radial
- Operating current: 800 mA
- Operating time: 3.8 s
- Holding current: 0.4 A
- Rated voltage: 60 V
- Current mAx: 40 A
- Minimum resistance: 0.52 Ω
- Maximum resistance: 1.29 Ω
- Power Loss: 0.55 W
- Body Height: 13.7 mm
- Body Length: 7.4 mm
- Body Width: 3.1 mm
- Wire pitch: 5.1 mm
- Wire Length: 7.6 mm
- Wire Diameter: 0.51 mm
- RoHS Compliance Status: Compliance
- Securities Code: 637-6353
