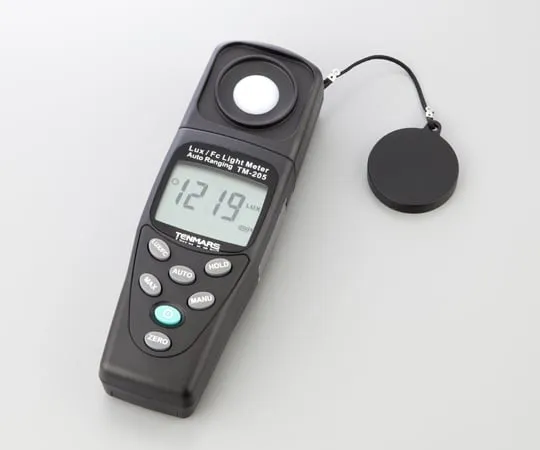

1-1633-01-56 Illumination Meter with English Calibration Certificate TM-205
Product Description
Product Model: 1-1633-01-56Product Brand: Tenmars Spec […]
Contact Us
Product Details
Product Model: 1-1633-01-56
Product Brand: Tenmars
Spec
- Measuring range (Lx): 200, 2000, 20,000, 200,000
- Resolution: 20 Lx/0.01 Lx, 200 Lx/0.1 Lx, 2000 Lx/1 Lx, 20,000 Lx/10 Lx, 200,000 Lx/100 Lx
- Accuracy: +/- 6% (LEDs can not be measured)
- Sampling: 2.5 times/second
- Features: Maximum/Minimum Display, Data Hold Auto Power Off
- Power supply: 1 x 006P (9V) battery (included for testing)
- Size: 56 x 38 x 172 mm
- Weight: 250 g
- Sensor: Silicon photodiode
- Operating temperature and humidity range: -10 to + 50 degrees C, 80% RH
- Standard: Complies with JIS C 1609: 1993 "Class A General Model"
- The standard calibration points are 500 lx, 2000 lx and 4000 lx 3 points. If you would like additional points, please contact us separately.
