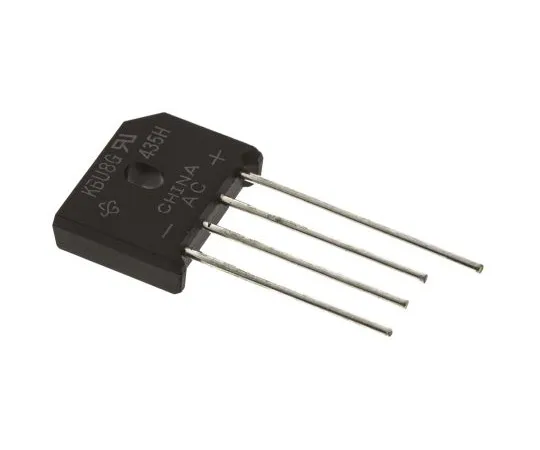

63-4903-56 Vishay KBU8G-E4/51, Bridge Rectifier, 8A 400V, 4-Pin KBU KBU8G-E4/51
Product Description
Product Model: 63-4903-56Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4903-56
Product Brand: Vishay
Features
- UL E54214. SIL PCB Mounting, KBU Series, Vishay Semiconductor. KBU4x, KBU6x and KBU8x series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor. Soldering pins for Printed Circuit Board (PCB) through-hole mounting High surge current capability Isolating voltage 1500Vrms Package centre hole for fixing
Spec
- Quantity：1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 8A
- Peak Reverse Repetitive Voltage : 400V
- Mounting Type : Through Hole
- Package Type : KBU
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -50 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 10µA
- Length : 23.7mm
- Width : 7.1mm
- CODE No.:634-9288
