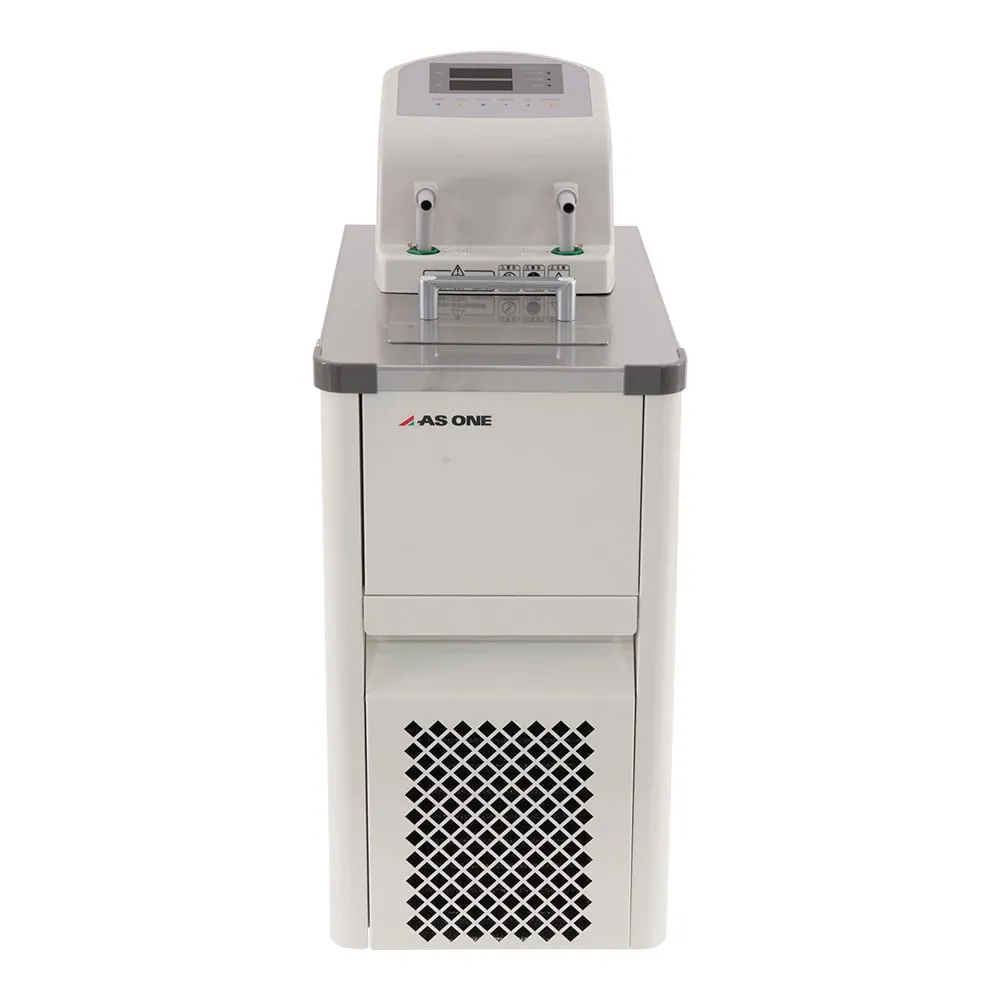

1-5468-51-22 Constant-Low-Temperature Water Circulator -30 to + 80 180W With Pre-Shipment Inspection Certificate LTB-125α
Product Description
Product Model: 1-5468-51-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5468-51-22
Product Brand: AS ONE Corporation
Features
- The *** of high-performance refrigerators has increased cooling capacity.
- SUS304 square coils are ***d in the circulating water cooler, so it is compatible with pure water * 1.
- The refrigerant ***s R-404, which has an ozone depletion potential of 0, and is environmentally fri***ly.
- An external circulating nozzle is mounted on the front of the controller and can be turned freely 180 degrees.
- A PV/SV two-stage display is ***d for the temperature setting display, and the measured and set values can be checked at a glance.
- By attaching a SB (support bar/metal holder set), you can clamp the flask or external sensor inside the water tank.
- When using pure water, *** a liquid with an electrical conductivity of 10μ/cm or higher (near purity).
- It features fine temperature control and the durability of stainless steel coils.
Spec
- Model number: LTB -125 α (With pre-shipment inspection certificate)
- Type: 30 to + 80
- Cooling ability (W): 180
- Temperature setting and display method: Key input method (0.1 °C), PV/SV digital 2 stages display
- Temperature control method: microcomputer PID control
- Temperature sensor: Temperature measuring resistor (Pt 100 ω)
- Temperature control accuracy: ±0.1 °C (May exceed range dep***ing on conditions)
- Heating heater: 1 kW
- Outer dimensions: 250 x 435 x 630mm
- Tank inner dimensions: 136 x 239 x 150mm
- Effective aperture Dimensions: 133 x 116 x 150mm
- Tanto capacity: about 4L
- Material : water tank , Coil/Stainless Steel (SUS304)
- Solution Type: pure water, Shimizu, ethylene glycol, ethyl alcohol
- ** When using pure water, *** a liquid with an electrical conductivity of 10 μs/cm or more (Be close to the purity).
- Refrigerant: R -404 A
- Circular Pumps: maximum flow rate 9.6 L/min, Maximum lifting height 2.8 m
- Circulating nozzle outer diameter: φ11mm (Applicable Tube inner diameter φ8mm)
- Safety device: Self-diagnosis function (upper and lower limit temperature abnormality detection, float type blank firing prevention, sensor abnormality, heater disconnection, earth leakage/overcurrent breaker, refrigerator overload relay)
- External input/output: External temperature sensor input terminal (For Pt 100), analog output meter for thermometer (1 to 5V), alarm output terminal (DC 12 to 17 V, 20 mA)
- Timer function: 1 minute to 48 hours (Per minute)
- Power supply: AC100V 50/60Hz
- Maximum Operation Current: 14 A
- Weight: 29kg
- Accessories: External circulation nozzle x 2 pieces, outlet adapter x 1 piece, insulated hose (inner diameter φ8mm x 1m) x 2 pieces
- *The refrigerator does not work when the liquid temperature is over 40 °C.
- *Avoid continuous Operation in high temperature range (Around 80 °C).
- *The performance of the circulating Pumps is the value when using Pumps alone.
- *The pre-shipment inspection certificate is included.
