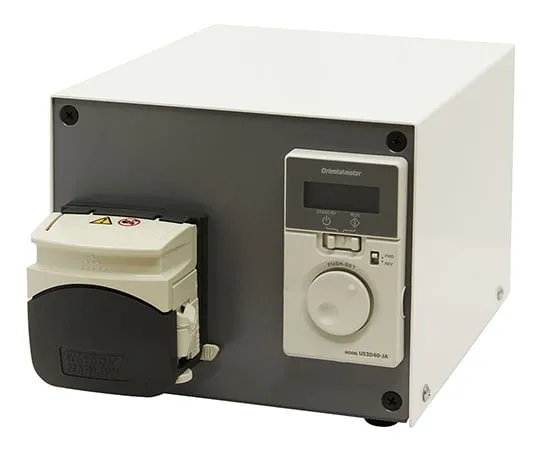

1-5425-21 Tubing Pump 313/US 200 Type (1 ch) -
Product Description
Product Model: 1-5425-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5425-21
Product Brand: AS ONE Corporation
Features
- Flow liquid and slurry to a constant volume.
- There is no grand seal valve and there is no worry of valve leakage or seal leakage.
- With the action of the automatic check valve, there is no need to worry about backflow.
- The flip-top method (up/down opening/closing method) allows tube replacement to be done smoothly with one touch.
- Up to two heads can be installed (standard includes one head).
Spec
- standards : 313/US 200 Type (1 ch)
- flow rate (mL/min) * : 50Hz/0.4 to 1099 , 60Hz/0.4 to 1259
- *Value at pressure relief/lifting height 0, city water, R.T.. Maximum value: MAX rotation speed/inner diameter Φ 8.0, mm Tube Used, Minimum value: MIN rotation speed/inner diameter Φ 0.5, mm Tube Used
- rotation speed : 50Hz/12 to 186 rpm , 60Hz/12 to 213 rpm
- Number of Mounting pumps Heads: 2 pieces (Standard pumps Head + Ext***ed pumps Head)
- *Inquire if 3 pieces or higher is installed.
- Discharge Pressure (Standard): Silicon Tube/Maximum 0.15 MPa, Merplane Tube/Maximum 0.2 MPa * Dep***ing on Tube material and Size
- Usable tube: Silicon, Merprene, Bioprene, neoprene rubber, Tygon, etc. * Please *** a tube with a wall thickness of 1.6 mm/inner diameter Φ 0.5 to 8.0 mm.
- Usable Liquid Viscosity: 200 cP
- Pump priming: Not required
- Forward/Reverse Operation Switching: Possible
- power supply: AC100V 50/60 Hz
- power cord length : 2 m (2P Plug)
