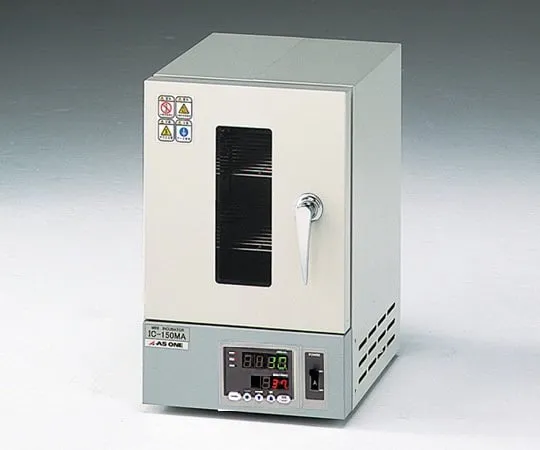

1-5421-41-28 Small Incubator with Pre-shipment Validation IC-150MA
Product Description
Product Model: 1-5421-41-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5421-41-28
Product Brand: AS ONE Corporation
Features
- The temperature control ***s PID control by a microcomputer, which provides high accuracy and stable performance.
- Four timer functions are provided as standard.
- The PV/SV two-stage display is ***d for the temperature display, so you can check the measured value and the set value at a glance.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 3 points at 37 degrees Celsius
- Temperature range: room temperature + 5 ~ 80 degrees C
- Natural convection system
- Temperature distribution width: 4 degrees C
- Temperature display unit: 1 deg.
- Temperature control system: microcomputer PID control
- Sensor: K thermocouple
- Timer function: ON/OFF/ON/OFF/SV start
- Timer setting range: 1 minute to 99 hours 59 minutes
- Heater capacity: 300 W
- Safety device: Overtemperature protection device/Overcurrent breaker
- Observation small window: 70 x 190 mm
- Shelf pitch: 30 mm (maximum 6 rack)
- Power supply: 100 VAC 50/60 Hz 3 A
- Power cord length: approx. 1.5 m (3 P plug)
- Internal dimensions: 180 x 240 x 220 mm
- External dimensions: 250 x 320 x 400 mm
- Weight: 9.5 kg
- Accessories: 2 shelf boards, 4 shelf receptacles
- Local validation services (IQ/OQ) are also available. Please contact us.
- *The on-site validation service is a service that performs installation qualification (IQ) and operational performance qualification (OQ) at the installation site and submits an inspection form.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
