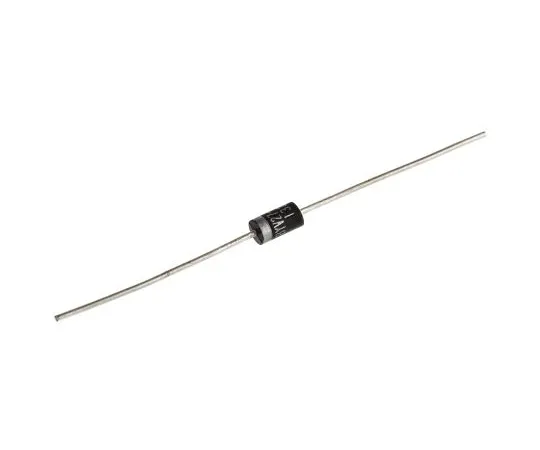

63-4903-14 Vishay 200V 2A, Silicon Junction Diode, 2-Pin DO-15 SBYV27-200-E3/54 SBYV27-200-E3/54
Product Description
Product Model: 63-4903-14Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4903-14
Product Brand: Vishay
Features
- Ultrafast Recovery Rectifiers 2A to 5A, Vishay Semiconductor. Vishay ultrafast recovery rectifiers have very fast reverse recovery times as low as 15ns and voltage levels as high as 1500V. Typical applications include very high frequency switched mode power supplies (SMPS), inverters, and freewheeling diodes.
Spec
- Quantity：1bag(5pieces)
- Maximum Continuous Forward Current : 2A
- Rectifier Type : Switching
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Through Hole
- Package Type : DO-15
- Diode Technology : Silicon Junction
- Pin Count : 2
- Maximum Forward Voltage Drop : 1.07V
- Peak Reverse Recovery Time : 15ns
- Diameter : 3.6mm
- Peak Non-Repetitive Forward Surge Current : 50A
- CODE No.:633-0701
