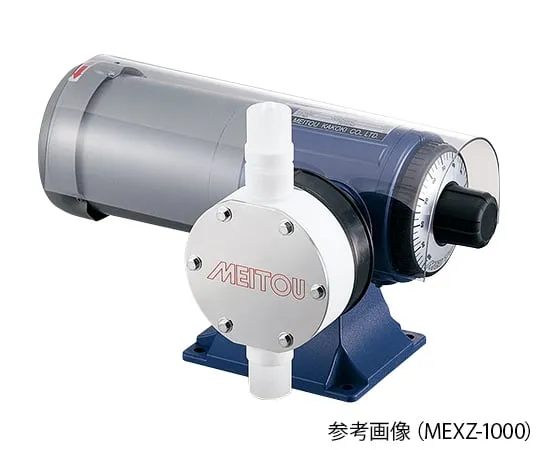

1-647-16 Diaphragm Quantitative Pump (50Hz) 200 - 2000mL/Min (60Hz) 240 - 2400mL/Min Vinyl Chloride Resin MEX-2000
Product Description
Product Model: 1-647-16Product Brand: MEITOU KAKOUKI CO […]
Contact Us
Product Details
Product Model: 1-647-16
Product Brand: MEITOU KAKOUKI CO., LTD.
Features
- The flow rate can be adjusted step by step regardless of whether it is in operation or stopped.
- Planetary gear two-stage deceleration allows continuous operation for a long time.
- Uses aluminum inside, so it's lightweight.
Spec
- Model number: MEX-2000
- Discharge quantity (mL/min): 200 - 2000
- Discharge quantity (mL/min): 240 - 2400
- Maximum pressure (MPa): Approximately 0.49 (5kg/cm2)
- Pump head material/connection hose diameter(φmm): PVC (vinyl chloride resin)/10 x 16
- Suction head: 2m
- Available liquid viscosity: 300mPa・s
- Liquid junction material Diaphragm: PTFE (poly tetrafluoroethylene), O-ring: Viton, Head, included hose: PVC (vinyl chloride resin)
- Weight: 13kg
- Power supply: AC100V 65W
- Accessories: Hose 4m
- *It can be installed in safety explosion-proof motor, pressure explosion-proof motor, different voltage motor, etc. Please contact with us.
