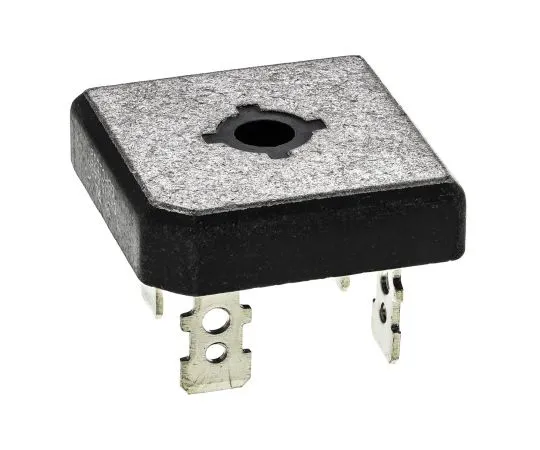

63-4899-03 Vishay GBPC1502-E4/51, Bridge Rectifier, 15A 200V, 4-Pin GBPC GBPC1502-E4/51
Product Description
Product Model: 63-4899-03Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4899-03
Product Brand: Vishay
Features
- UL E54214. Bridge Rectifiers with Push-on Terminals, GBPC15 Series, Vishay Semiconductor. High Current 15 Amperes Universal, 3-way terminals: Push-on, wrap around or solder Glass passivated chip junction Low thermal resistance
Spec
- Quantity：1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 15A
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 300A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 5µA
- Length : 28.8mm
- Height : 7.62mm
- CODE No.:629-6689
