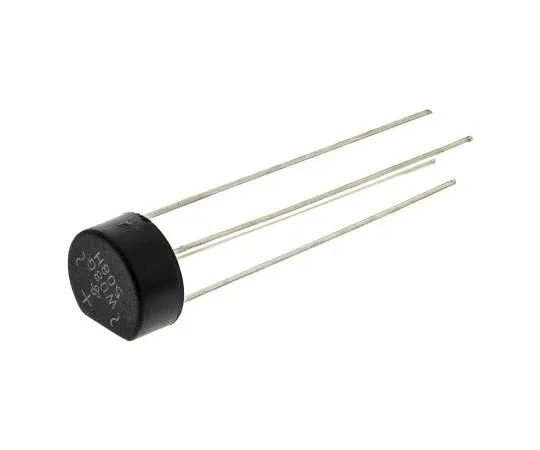

63-4898-85 Vishay W08G-E4/51, Bridge Rectifier, 1.5A 800V, 4-Pin WOG W08G-E4/51
Product Description
Product Model: 63-4898-85Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4898-85
Product Brand: Vishay
Features
- UL approved, E54214. Bridge Rectifiers with Wire Leads, WxxG Series, Vishay Semiconductor. Glass Passivated Single-Phase Bridge Rectifier Low DC reverse current High dielectric strength case Wire Lead structure for Printed Circuit Board (PCB) through hole mounting
Spec
- Quantity：1bag(5pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 1.5A
- Peak Reverse Repetitive Voltage : 800V
- Mounting Type : Through Hole
- Package Type : WOG
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 50A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 5µA
- Length : 9.86mm
- Height : 5.6mm
- CODE No.:629-5169
