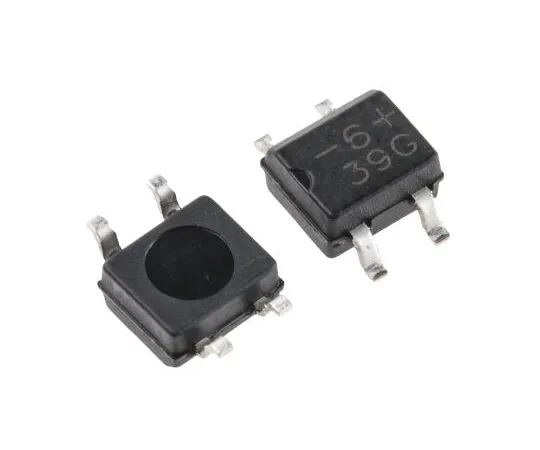

63-4898-55 Vishay MB6S-E3/45, Bridge Rectifier, 800mA 600V, 4-Pin TO-269AA MB6S-E3/45
Product Description
Product Model: 63-4898-55Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4898-55
Product Brand: Vishay
Features
- UL, E54214. Bridge Rectifiers for PCB Surface Mount, MBxS Series, Vishay Semiconductor. Space saving SMT package Applicable for automated placement Ideal for Printed Circuit Board (PCB) reflow soldering
Spec
- Quantity：1bag(5pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 800mA
- Peak Reverse Repetitive Voltage : 600V
- Mounting Type : Surface Mount
- Package Type : TO-269AA
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 35A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1V
- Peak Reverse Current : 5µA
- Length : 4.95mm
- Width : 4.1mm
- CODE No.:629-0322
